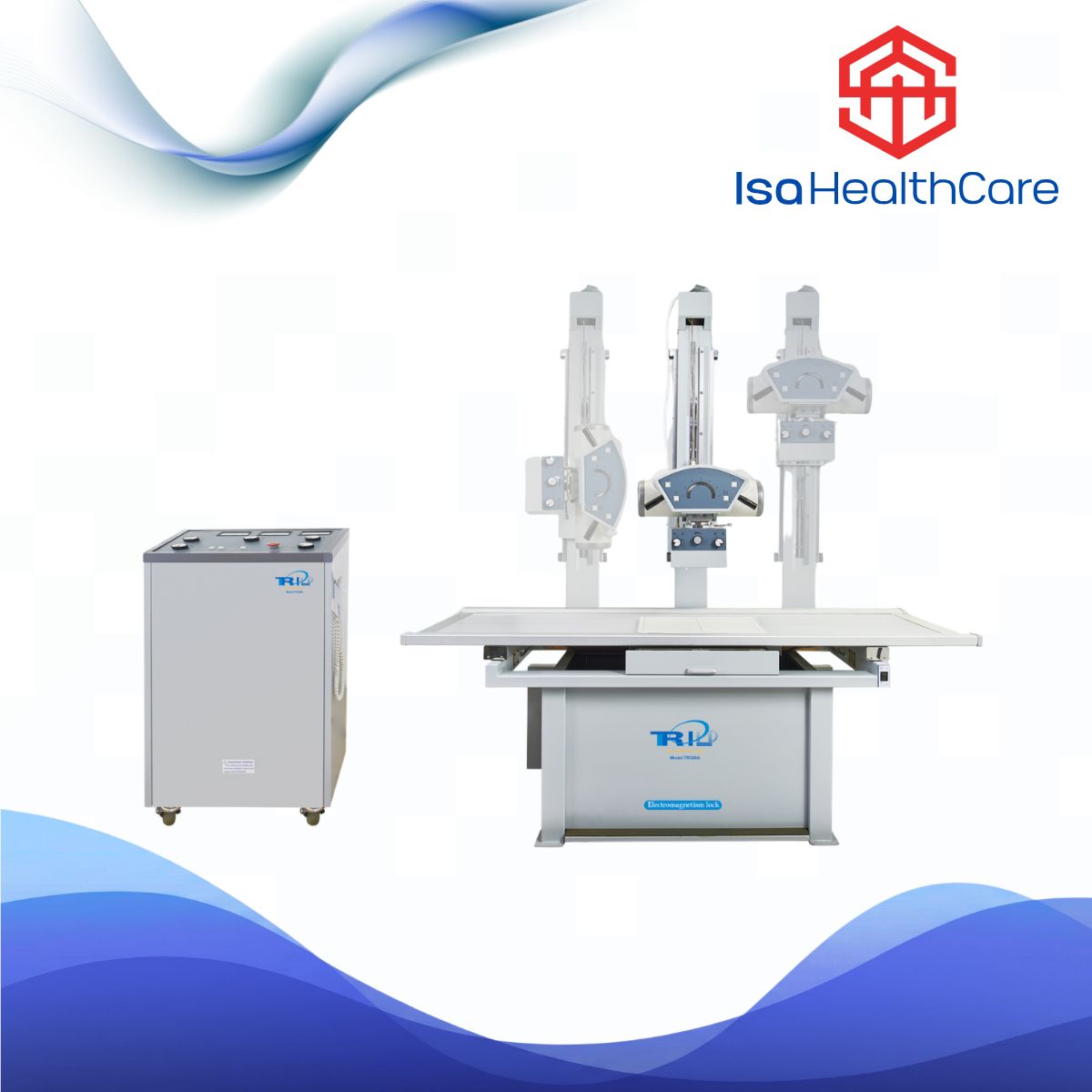

TRIUP 200mA X-Ray Machine (TR-200B)
Applications
Ideal for Routine Radiography, Bucky Radiography, Chest X-Ray, Abdominal Imaging, Orthopedic Imaging, and general diagnostic examinations in hospitals, clinics, and community health centers.
Technical Specifications (Summary)
| Component | Specification |
| Model | TR-200B |
| Power Supply | 380V / 220V ±10%, 50Hz ±0.5Hz / Two Phase 30KVA |
| High-Voltage Generator | Capacity: 20KVA (instantaneous) Max DC Output: 100kV / 200mA |
| Radiographic Voltage | 50kV ~ 100kV (infinitely variable) |
| Radiographic Current | Small Focus: 50mA Big Focus: 50mA, 100mA, 150mA, 200mA |
| Exposure Time | 0.05s ~ 6.3s (20 grades, R10 coefficient) |
| X-Ray Tube | Model: XD51-20,40/100 Rotary Anode / Dual Focus: 1x1mm (Small), 2x2mm (Big) |
| Radiographic Table (TR-SC1) | Table Dimensions: 2000mm x 780mm x 680mm Table Movement: 800mm (Longitudinal) / 240mm (Transverse) |
| Tube Stand Movement | Vertical Travel: 700mm ~ 1800mm Rotation around Cross Arm: ±180° |
| Grid | Grid Density: N28 / Grid Ratio: r8 / Focus Distance: 100cm |
| Max Cassette Size | 17″ x 17″ |
0
People watching this product now!
Description
Short Description
The TR-200B is a reliable and versatile 200mA diagnostic X-ray system designed for routine radiography and bucky radiography. Featuring intuitive controls, electromagnetic braking, and a stable design without floor tracks, it delivers consistent performance for hospitals and clinics.
Full Description
Reliable Imaging for Everyday Diagnostics
The TR-200B is a robust stationary X-ray system engineered to meet the daily demands of general radiography. With its 200mA high-voltage generator, precise digital timing, and user-friendly controls, it provides accurate and consistent imaging for a wide range of routine examinations.
Key Features & Benefits
- Reliable 200mA Generator: Single-phase high-voltage generator with max DC output of 100kV and 200mA, delivering dependable performance for standard radiographic procedures.
- Precise Digital Timing: Digital circuit timer with 20 exposure time grades (0.05-6.3s) according to R10 priority coefficient, ensuring accurate and repeatable exposures.
- Intuitive Control System: Features infinitely variable control for power supply voltage and radiographic kV. Separate digital displays for voltage, kV, and mA allow for easy monitoring.
- Comprehensive Safety Protections: Equipped with mA, kV, and S interlocking protection for subsections and grades, plus X-ray filament manostat, space charge compensation, and anode start protection.
- Flexible Patient Positioning: The radiographic table offers 800mm longitudinal and 240mm transverse movement. The tube stand provides extensive positioning options with vertical travel (700-1800mm) and ±180° rotation.
- Large Cassette Compatibility: Accommodates up to 17″ x 17″ cassettes for a wide range of examination types.
