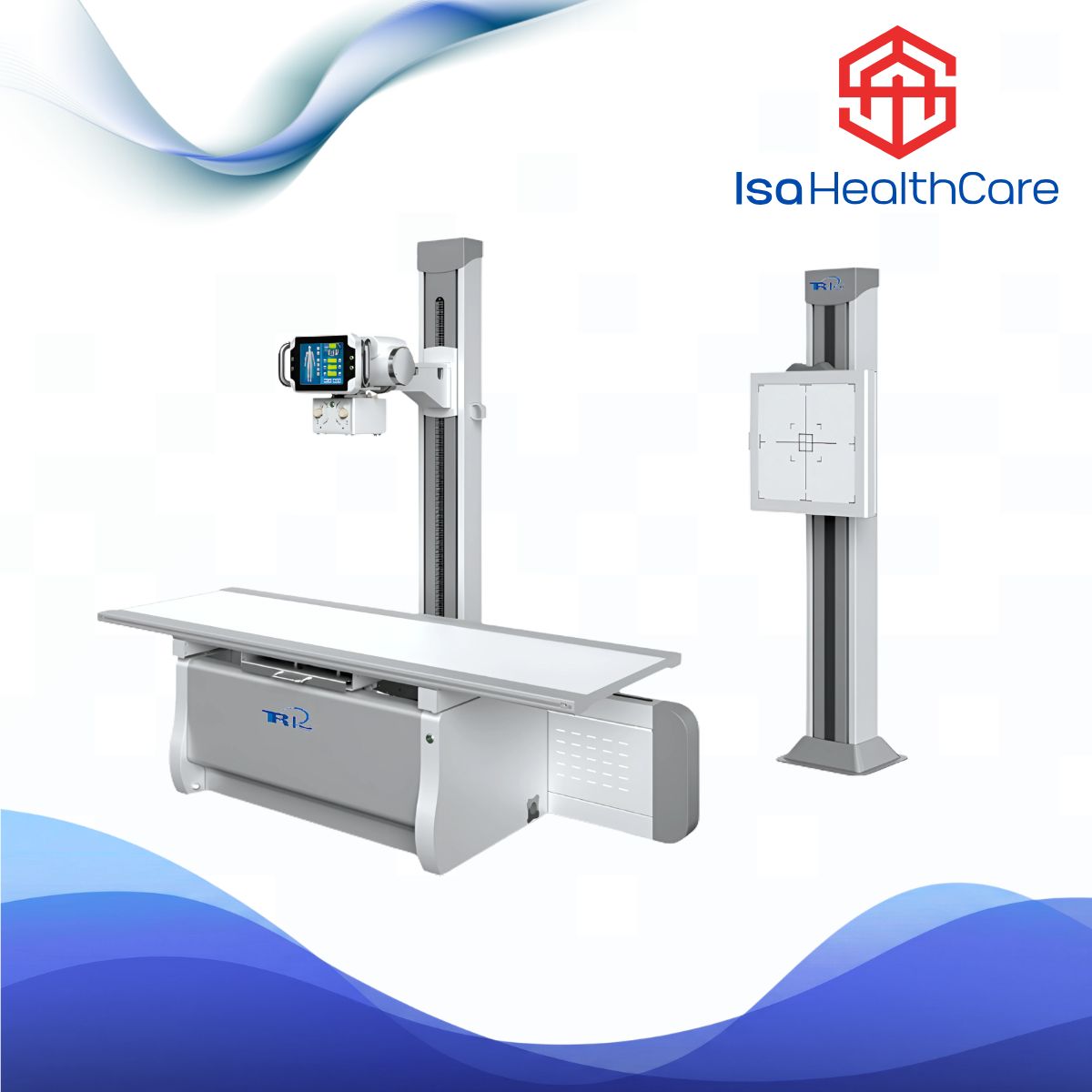

630mA High Frequency X-Ray Machine (TR-50N)
Applications
Ideal for General Radiography, Chest X-Ray, Pediatric Imaging, Orthopedic Imaging, Abdominal Imaging, and routine diagnostic examinations in hospitals, clinics, and diagnostic centers.
Technical Specifications (Summary)
| Component | Specification |
| Model | TR-50N |
| Generator | High-Frequency (400kHz) / Max. Output: 50kW |
| Power Supply | AC380V±10% Standard / AC220V±10% |
| Radiographic kV | 40kV ~ 150kV (1kV/step) |
| Radiographic mA | 10mA ~ 630mA (AC380V) / 10mA ~ 500mA (AC220V) |
| mAs Range | 0.1mAs ~ 630mAs |
| Exposure Time | 2ms ~ 6300ms |
| X-Ray Tube | Rotating Anode, Double Focus (0.6mm / 1.2mm) With Canon Tube |
| Radiographic Table | Dimensions: 2100mm x 825mm x 655mm Longitudinal Movement: ≥825mm / Horizontal Movement: ≥250mm |
| Tube Stand | Longitudinal Travel: ≥1575mm Rotation: Horizontal ±180° / Vertical ±90° Focus to Film Distance: ≥1200mm |
| X-Ray Grid | Fixed, 103L/inch, Ratio 10:1, Focus Distance 1000mm |
| Vertical Cassette Stand | Vertical Travel: ≥1000mm Min. Floor to Focus Distance: ≤800mm Max. Film Size: 17″x17″ |
0
People watching this product now!
Description
Product Title
TR-50N High-Frequency Stationary Medical Diagnostic X-Ray Machine
Short Description
The TR-50N is a reliable, high-frequency stationary X-ray system designed for precise diagnostic imaging. Featuring a powerful 50kW generator, an intuitive LCD touch screen control, and flexible power options, it delivers consistent performance for adult and pediatric examinations in hospitals and clinics.
Full Description
Precision Diagnostics with Advanced Control
The TR-50N is a state-of-the-art stationary X-ray system engineered to meet the diverse needs of modern radiology departments. Combining a robust 400kHz high-frequency generator with an intuitive digital control interface, this system ensures precise exposures and consistent image quality for a wide range of radiographic applications.
Key Features & Benefits
- Powerful 50kW Generator: Delivers high-output performance with a wide kV range (40-150kV) and mA range (up to 630mA), ensuring excellent image quality for a variety of examinations.
- Flexible Power Supply Options: Standard operation on AC380V. An optional energy-storing device allows for reliable performance on standard AC220V power, offering installation flexibility for different facility requirements.
- Intuitive LCD Touch Screen Control: The lightweight, compact console features a user-friendly touch screen interface with preset radiography parameters for multiple body parts and positions, including dedicated settings for adult and pediatric patients.
- Precision & Safety: Utilizes simulation and digital double-loop accuracy control for precise tube current and exposure timing. Includes default self-protection and self-diagnosis functions for safe and reliable operation.
- Comprehensive System Components: Includes a robust radiographic table with smooth longitudinal and horizontal movement, a flexible tube stand with wide rotation ranges (±180°), and a vertical cassette stand for versatile positioning.
- Digital Display: Clear digital readout of all exposure parameters for easy monitoring and adjustment.
