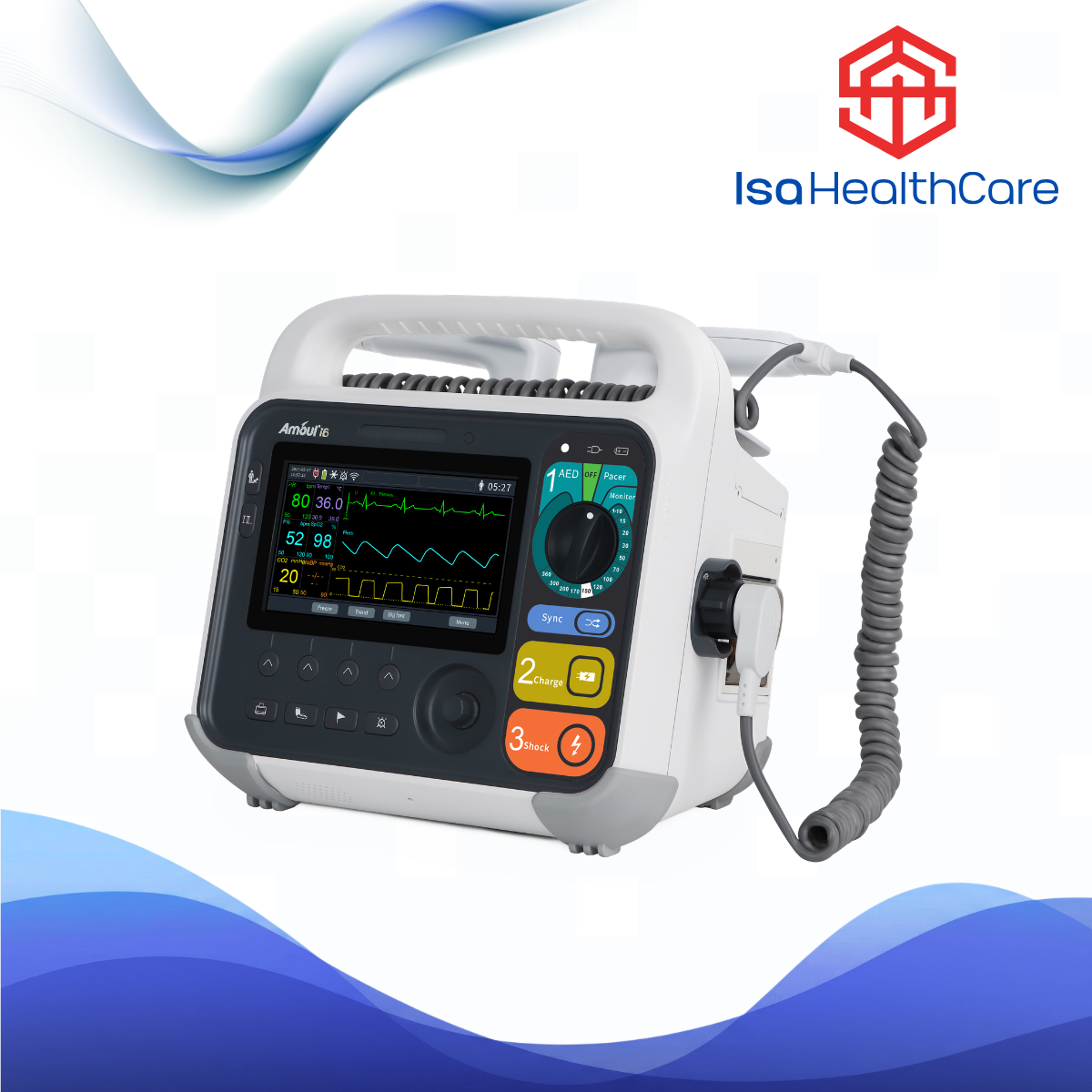

AMOUL Defibrillator Machine (i6)

General Description
Size 320 × 200 × 120 mm
Weight 5.2 kg
Power sources AC: 100-240V,50/60 Hz; Battery: rechargeable lithium-ion battery pack

Defibrillator Description
Waveform: Biphasic truncated exponential waveform (BTE) with impedance compensation
Impedance range: 25 Ω ～ 200 Ω (External defibrillation)
Energy selections: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 100, 150, 170, 200, 300, and 360J
Charge time
Reach 200 J in less than 5 seconds with a new, fully charged battery;
Reach 360 J in less than 8 seconds with a new, fully charged battery
Modes Manual mode: asynchronous and synchronous defibrillation; AED mode

Non-invasive Pacing Description
Modes: Fixed and on-demand mode
Waveform: Monophasic square wave pulse
Pulse: Rate: 40ppm ~ 170ppm ±1.5%; Current: 0mA～200mA ±5% or ±5mA, whichever is greater

Monitoring Description
Monitoring parameters: Three curves, 5-lead ECG, SpO2, non-invasive blood pressure, respiration,
EtCO2（i6 Pro only）, temperature (T1 & T2), and events.

Network solution Description
Standards Wired and 5G wireless networks
