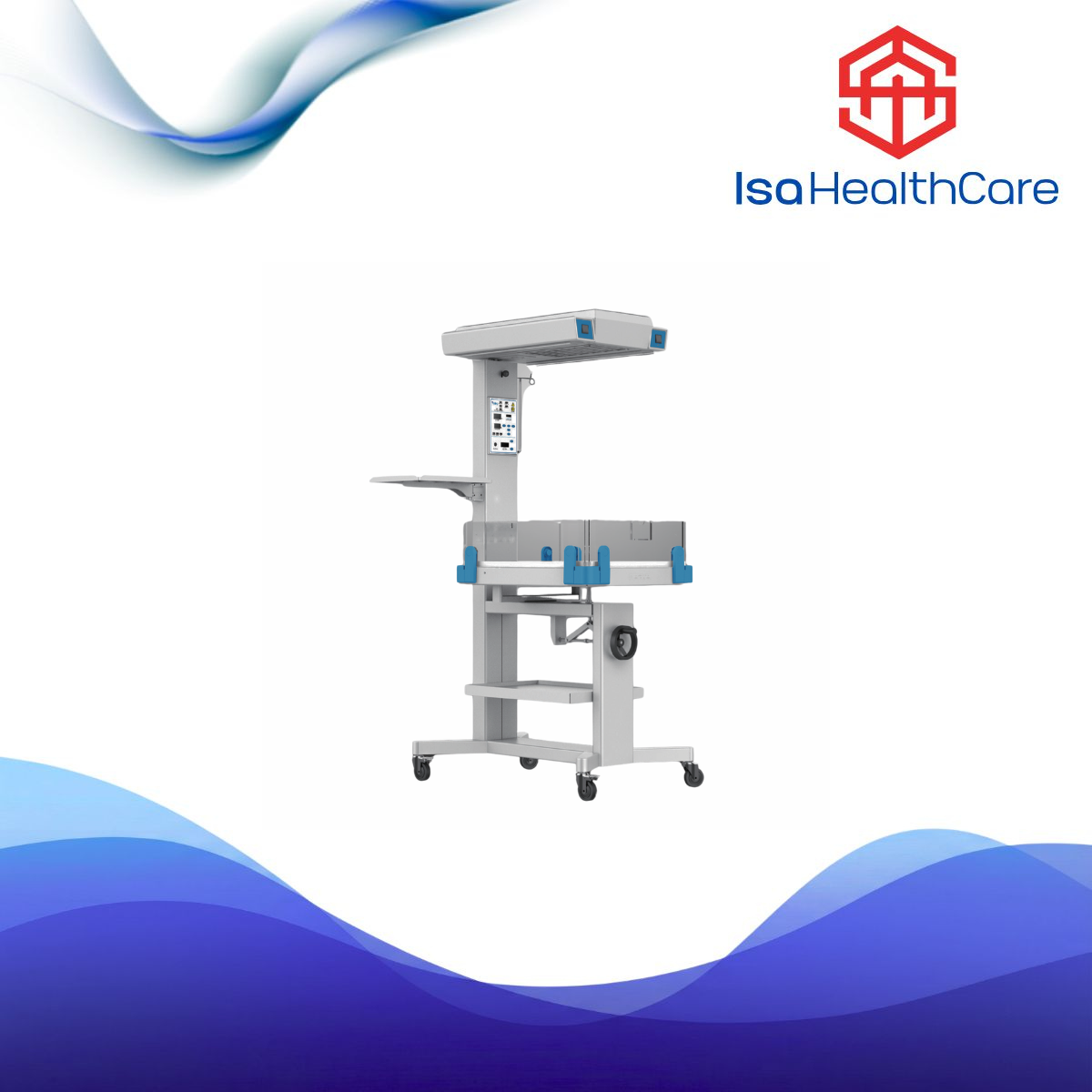

BEING Infant Warmer BIN-3000B
Product Description
The BEING BRW-3000B is an all-in-one solution for neonatal care that prioritizes thermal stability and clinical efficiency. Designed for the critical minutes following birth, it provides an open-access environment that allows medical staff to perform resuscitation, intubation, and cleaning while the infant is kept at a precise temperature.
The core of the unit is its high-efficiency infrared radiator, which ensures uniform heat distribution across the mattress. For infants requiring jaundice treatment, the integrated BBP phototherapy unit eliminates the need for bulky external lamps, saving valuable floor space in the NICU. With its modular design, the warmer can be further customized with low-pressure suction, oxygen supply, and X-ray trays, making it a versatile hub for neonatal stabilization.
Technical Specification Table
| Feature | Specification |
|---|---|
| Model | BRW-3000B |
| Electrical Requirement | ~ 220V 50Hz or ~ 230V 60Hz |
| Power Consumption | ≤ 700 VA |
| Control System | Micro-computer (Skin & Manual modes) |
| Display Type | High-visibility LED |
| Skin Mode Temp. Range | 25.0°C – 37.0°C |
| High Mode Temp. Range | 37.1°C – 38.0°C |
| Skin Sensor Accuracy | ≤± 0.3°C |
| Temp. Deviation Alarm | ± 1.0°C |
| Over Temp. Alarm | < 38.0°C (High Mode < 39.0°C) |
| Mattress Temp. Uniformity | ≤ 2.0°C |
| Heating Rate | ≤ 30 minutes |
| APGAR Timing | 1 min, 5 min, 10 min |
| Phototherapy Function | Included (Integrated LED) |
| Data Output | RS-232 Connector |
0
People watching this product now!
Description
Description
The BEING BRW-3000B is a high-performance neonatal workstation designed for delivery rooms and intensive care units. It combines precise micro-computerized thermal regulation with an integrated LED phototherapy system. Featuring an adjustable radiation head, step-free mattress tilting, and an integrated APGAR timer, it provides a comprehensive environment for neonatal resuscitation, observation, and jaundice treatment.
Key Features
- Dual Control Modes: Micro-computerized system supports both Skin Temperature Mode (servo-controlled) and Manual Mode for flexible clinical use.
- Integrated Phototherapy: Unlike the standard model, the BRW-3000B comes standard with a built-in LED phototherapy unit to treat neonatal jaundice simultaneously with thermal support.
- Adjustable Radiation Head: The heater head can be adjusted horizontally, allowing for easier access during X-rays or surgical procedures without moving the infant.
- Advanced APGAR Timer: Features a built-in timer with audible signals at 1-minute, 5-minute, and 10-minute intervals to assist during resuscitation.
- Precise Positioning: Offers a “free-step” mattress tilting adjustment to help manage infant respiration and drainage.
- Comprehensive Safety Alarms: Includes audible and visual alerts for over-temperature, temperature deviation, sensor failure, and power failure.
- Built-in Illumination: Equipped with a dedicated observation light for clear clinical assessment in low-light environments.
