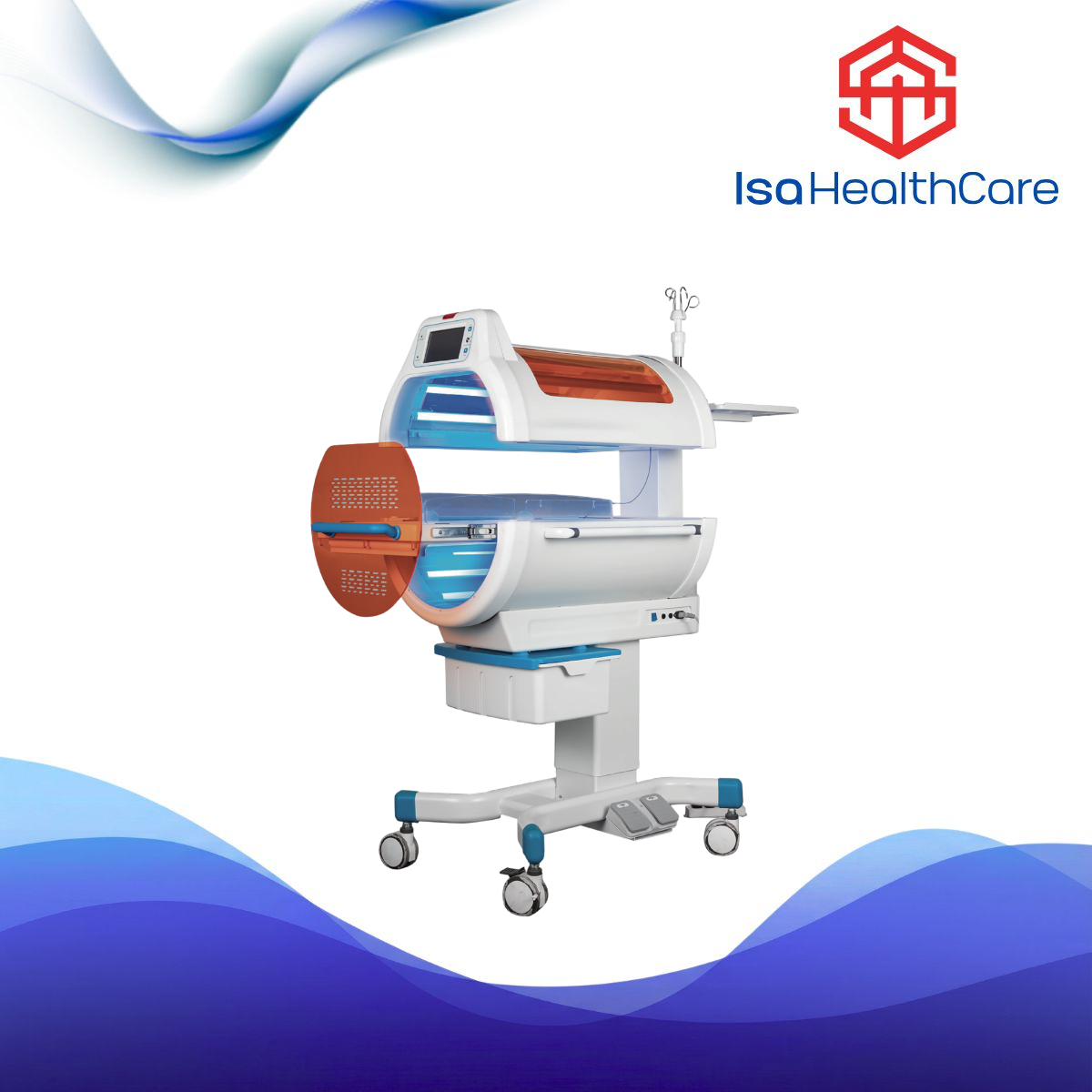

BEING Led Phototherapy Tunnel Type BBP-5000A
Product Description
The BEING BBP-5000A represents the pinnacle of jaundice management technology. Traditional overhead phototherapy often requires frequent repositioning of the infant; however, the BBP-5000A’s tunnel architecture provides total body coverage, achieving efficient treatment effects in a fraction of the time.
The device is designed with a “Neat Cabin” philosophy, making it easy to clean and maintain. It provides high-intensity irradiance (up to 3600μw/cm²) within the most effective blue-light wavelength range (400nm ~ 550nm). With its intuitive display for treatment time and cumulative usage, along with voice and text reminders, the BBP-5000A streamlines clinical workflows while prioritizing the safety and comfort of the newborn.
Technical Specification Table
| Feature | Specification |
|---|---|
| Model | BBP-5000A |
| Light Source | LED (Light Emitting Diode) |
| Max Irradiance (Upper) | 3600 μw/cm² |
| Max Irradiance (Lower) | 3200 μw/cm² |
| Effective Wavelength | 400 nm ~ 550 nm |
| Irradiation Intensity | Selectable: 33%, 66%, 100% |
| Effective Irradiation Area | 400 mm × 250 mm |
| LED Lighting (White) | ≥ 1700 Lux |
| Height Adjustment (Lift) | 0 ~ 200 mm |
| Baby Cabin Opening Width | 0 ~ 30 cm |
| Treatment Time Display | 0 ~ 99 h 59 m |
| Cumulative Usage Time | 0 ~ 49999 h 59 m |
| Skin Temp. Display Range | 5°C ~ 65°C |
| Upper Limit Alarm (Skin) | 33°C ~ 38.5°C |
| Upper Limit Alarm (Box) | 16°C ~ 42°C |
| Alarm Sound Pressure | Adjustable: 25%, 50%, 75%, 100% |
| Power Supply | AC 100 ~ 240V, 50/60Hz |
| Input Power | ≤ 250 VA |
0
People watching this product now!
Description
Description
The BEING BBP-5000A is a high-intensity, tunnel-type phototherapy unit designed for the rapid treatment of neonatal hyperbilirubinemia. By providing 360° dead-angle-free irradiation through top and bottom LED banks, it maximizes the effective treatment area and significantly shortens the time required to reduce bilirubin levels. Featuring intelligent temperature control and an ergonomic mobile stand, it is a flagship solution for modern NICUs.
Key Features
- 360° Full-Body Irradiation: The tunnel design ensures that the infant’s skin is exposed to therapeutic light from all angles simultaneously, providing high uniformity and a large effective irradiation area.
- Dual-Sided LED Technology: Equipped with powerful upper and lower LED light sources with three selectable intensity levels (33%, 66%, 100%) to tailor treatment to the patient’s needs.
- Automatic Temperature Regulation: Features a built-in ambient temperature adjustment system to ensure the infant remains in a safe and comfortable thermal environment during phototherapy.
- Smart Safety Protocols: The treatment automatically suspends when the bed is pulled out, preventing unnecessary light exposure and ensuring caregiver safety.
- Enhanced Visibility: Includes a dedicated white LED light bulb, allowing clinicians to accurately observe the infant’s natural skin color without the distortion of blue light.
- Ergonomic Height Adjustment: Optional electric elevator feet allow for a 200mm lift range, ensuring the equipment meets the operational needs of different healthcare staff.
- 360° Visible Alarm Light: A high-visibility alarm indicator ensures that medical staff can recognize alerts from any position in the room.
