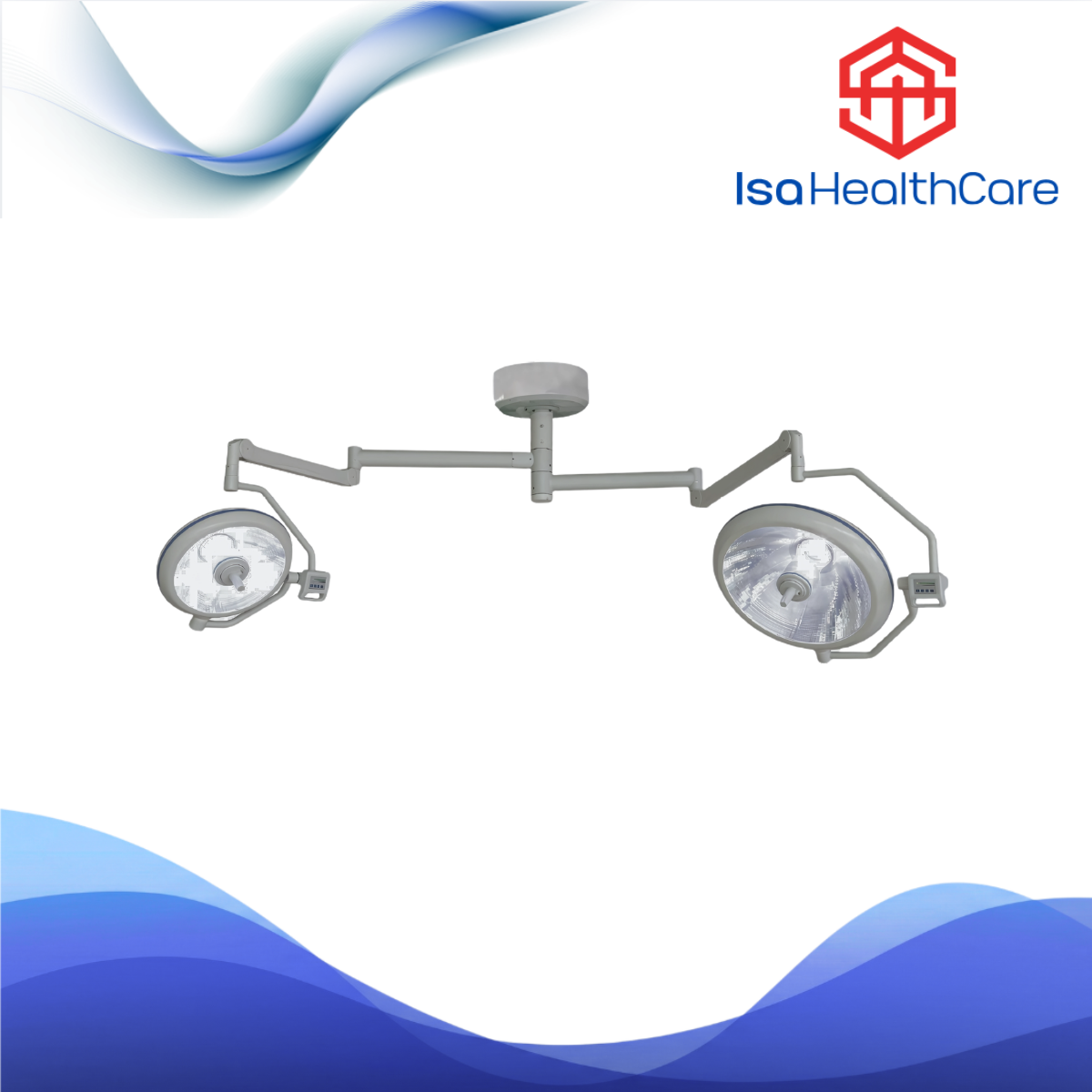

DEMAN MEDICAL Halogen Double Dome OT Light (Global Reflection) YDZ 700/700

Product Description: YDZ 700/700 Global Reflection Surgical Light

The YDZ 700/700 represents the pinnacle of optical engineering in surgical illumination. Utilizing advanced global reflection technology with a multi-surface reflector system, this dual-head surgical light delivers exceptional shadow control, deep cavity penetration, and uninterrupted lighting reliability for the most demanding surgical environments.

Advanced Optical System

• Multi-Surface Reflector Technology: Features a sophisticated multifunctional filter reflective mirror system with 358 to 4,215 individual mirror surfaces, engineered to maximize shadow reduction and ensure uniform light distribution across the surgical field.
• Super Strong Illumination: Delivers a remarkable 160,000 Lux (700 lamp holder) with a spot diameter of just 16cm, concentrating intense light exactly where it’s needed.
• Exceptional Depth of Illumination: The specialized reflector structure creates an effective illumination depth of 1.2 meters (1,200mm) , providing outstanding visibility into deep surgical cavities.
• Adjustable Color Temperature: Seamlessly tune from 3,000K (warm) to 6,700K (cool) to match surgeon preference and optimize tissue differentiation.

Uninterrupted Lighting Assurance

• Intelligent Backup System: A critical safety feature—an intelligent conversion device inside the lamp head ensures that if the primary bulb fails, the backup bulb automatically engages within 0.1 seconds, guaranteeing continuous, unchanged illumination without any disruption to the surgical procedure.
• Reliable Performance: This automatic switching mechanism provides peace of mind during critical surgeries where even a momentary loss of light is unacceptable.

Precision Control & Mechanical Performance

• Lightweight & Stable Suspension: The mechanical system offers a full range of activity with infinite rotatability. It can be precisely and effortlessly positioned at any desired angle without dead zones, and remains drift-free once locked.
• Ten-Level Dimming: Provides precise brightness adjustment with ten-level dimming control, allowing surgeons to select the perfect intensity for each procedural phase.
• Dual Spot Diameter Options: Features D50 spot diameter of 100mm (700) / 120mm (500) and D10 spot diameter of 200mm (both) for versatile field coverage.

Hygienic & Integrated Design

• Diversified Configuration Options: Can be perfectly combined with suspension tower systems and used simultaneously, allowing for customized OR setups based on user requirements.
• Low Heat Output: Irradiance with wavelengths less than 400nm is kept below 0.006 W/m², minimizing tissue drying and ensuring surgeon comfort.
