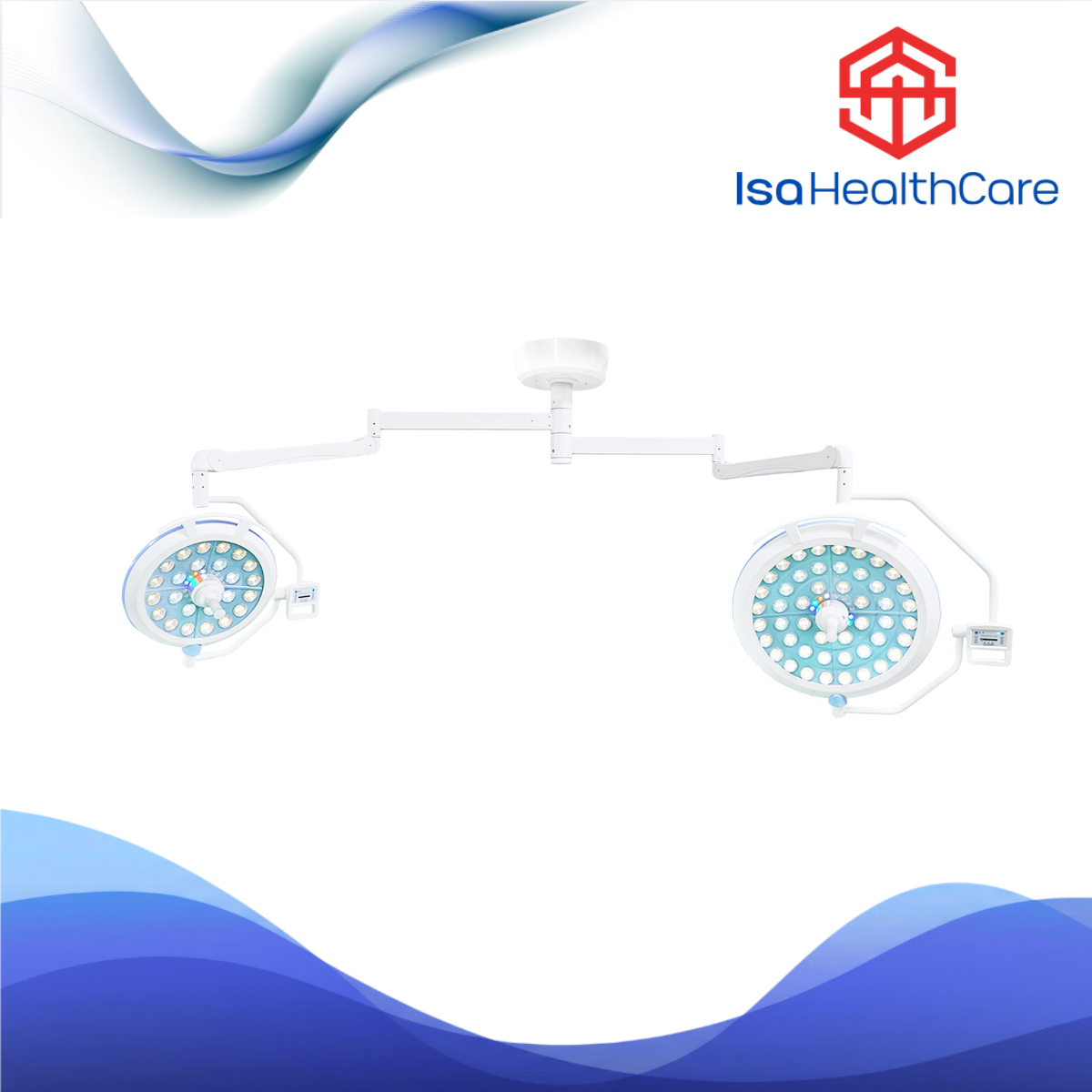

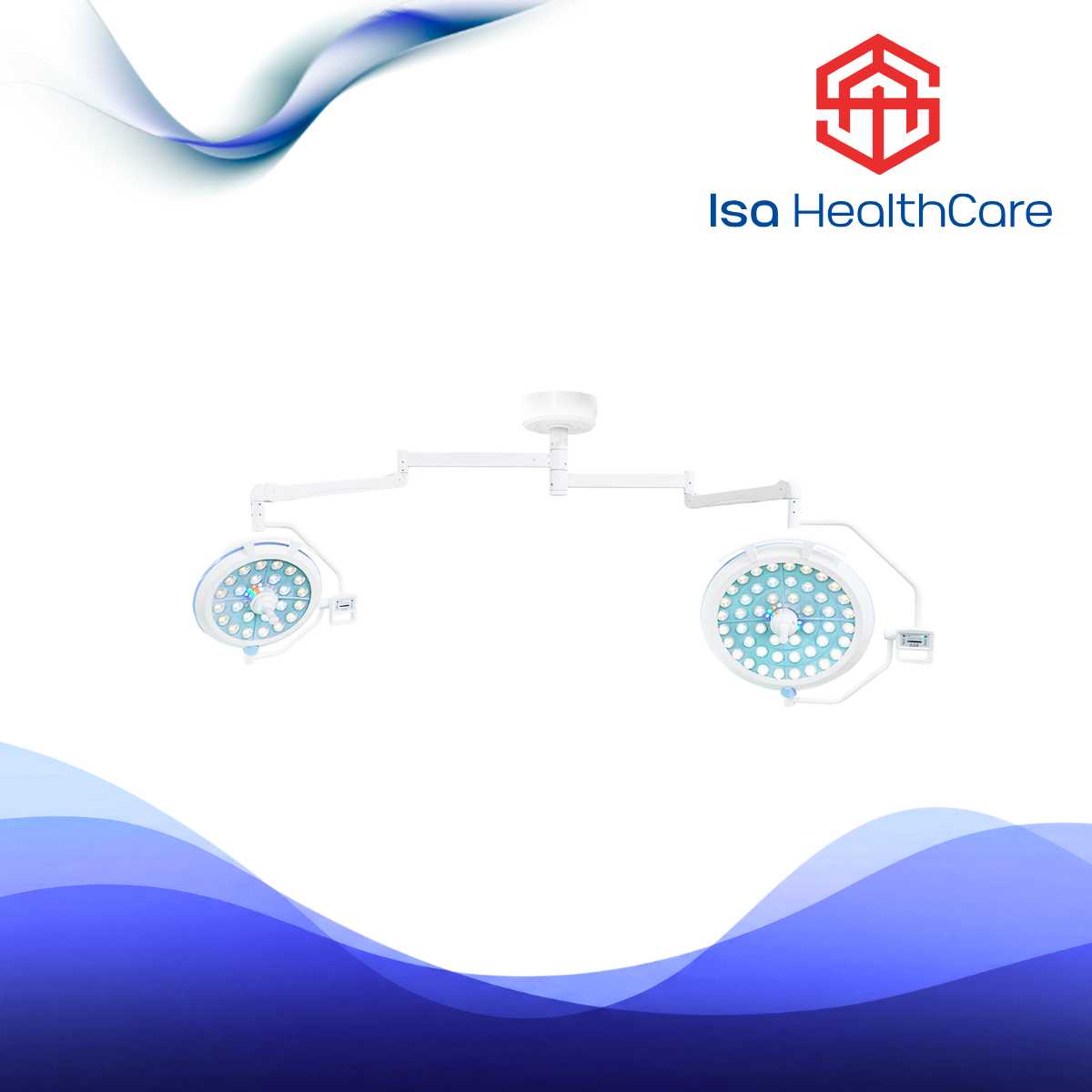

DEMAN MEDICAL LED Double Dome OT Light (Large Lens) YDE 700/700 (RGB)

Product Description: YDE 700/700 RGB LED Surgical Light (Large Lens)

The YDE 700/700 RGB represents the next generation of surgical illumination, integrating advanced RGB color compensation technology with high-intensity LED output. Designed for the most demanding surgical environments, this dual-head system enhances tissue differentiation and supports wound healing, all while maintaining strict hygiene standards.

Revolutionary RGB Color Compensation
Unlike standard surgical lights, the YDE 700 RGB features a specialized color compensation function that enhances specific color spectrums to improve surgical outcomes:

• Red Function (R9): Utilizes 610nm red light to better distinguish vascular tissue. Red light also promotes wound healing and has a therapeutic effect on skin infections.
• Green Function (R11): Compensates the green spectrum to achieve full-spectrum standards, ensuring true tissue color representation.
• Blue Function (R12): Employs 470nm blue light to inhibit inflammation and compensates the blue spectrum for complete full-spectrum accuracy.

Superior Optical Performance

• High-Intensity Output: Delivers a maximum central illuminance of 160,000 Lux (700 lamp holder) for exceptional visibility in deep surgical cavities.
• Adjustable Color Temperature: Seamlessly tune from 4,000K to 5,500K to match surgeon preference and procedural requirements.
• Exceptional Color Accuracy: With a Color Rendering Index (Ra) of ≥90, it provides true-to-life tissue color representation, reducing eye strain.
• Low Thermal Rise: The surgical field temperature rise is kept below 2°C, preventing tissue drying and ensuring surgeon comfort.

Advanced Engineering

• Large Lens Design: Utilizes a “one main, three pairs” large lens structure (lens diameter ≥50mm), reducing light energy loss and improving the shadowless effect.
• Precision Focus: Adjustable focus radius of ≥280mm with stepless control over illumination and color temperature (1-100%).
• Durable LED Beads: Features imported LED lamp beads with an average lifespan of ≥60,000 hours.

Hygienic & Ergonomic Design

• Sterilizable Handle: The detachable handle features a push-button release with no exposed screws. It withstands high-temperature, high-pressure steam sterilization (134°C).
• Robust Suspension System: The 6-joint suspension arm with wrap-around handles allows easy positioning by both sterile and non-sterile personnel. The arm remains drift-free once locked.
• Wear-Resistant Control Panel: The imported PET control panel is scratch-resistant, corrosion-resistant, and tested to withstand over 100,000 uses.
