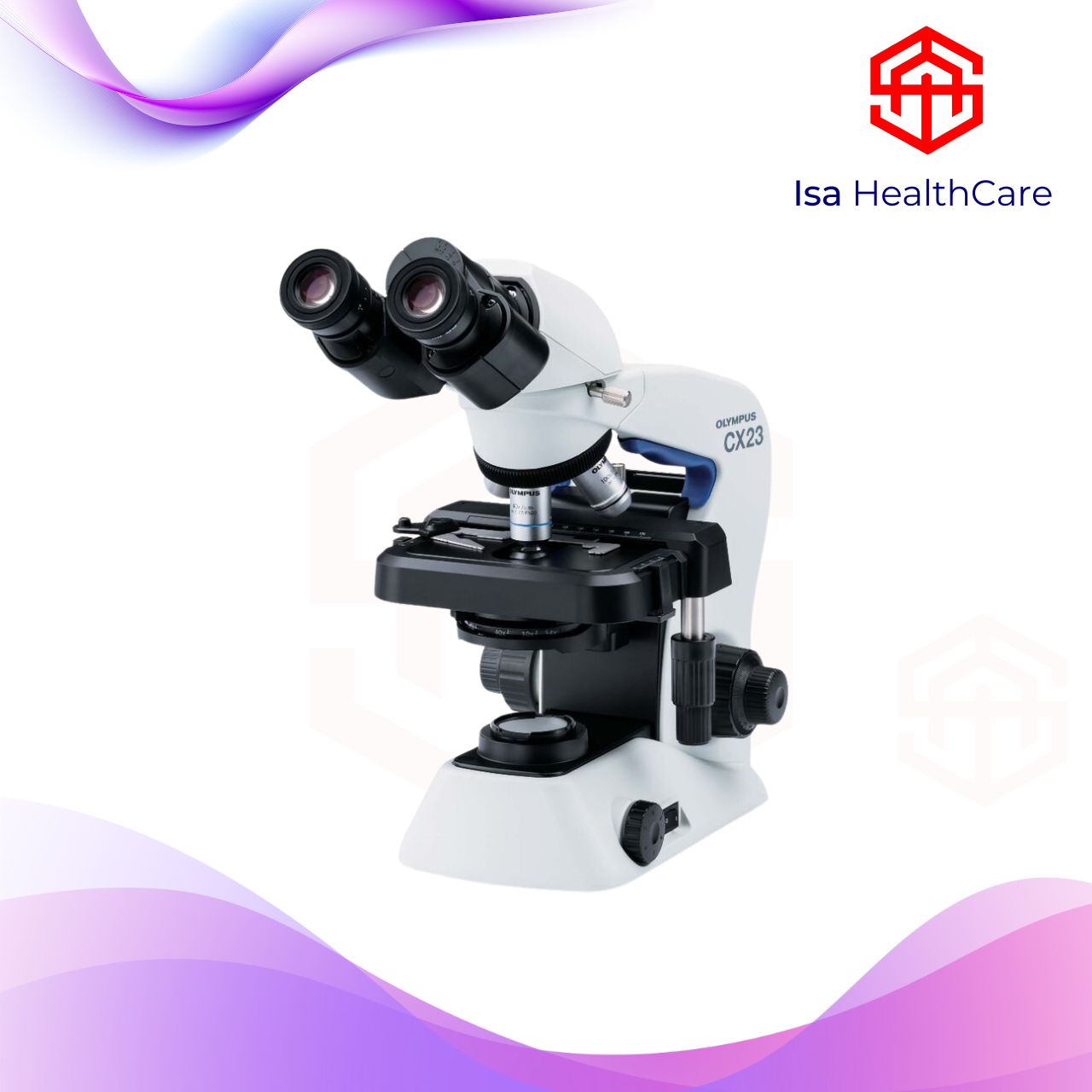

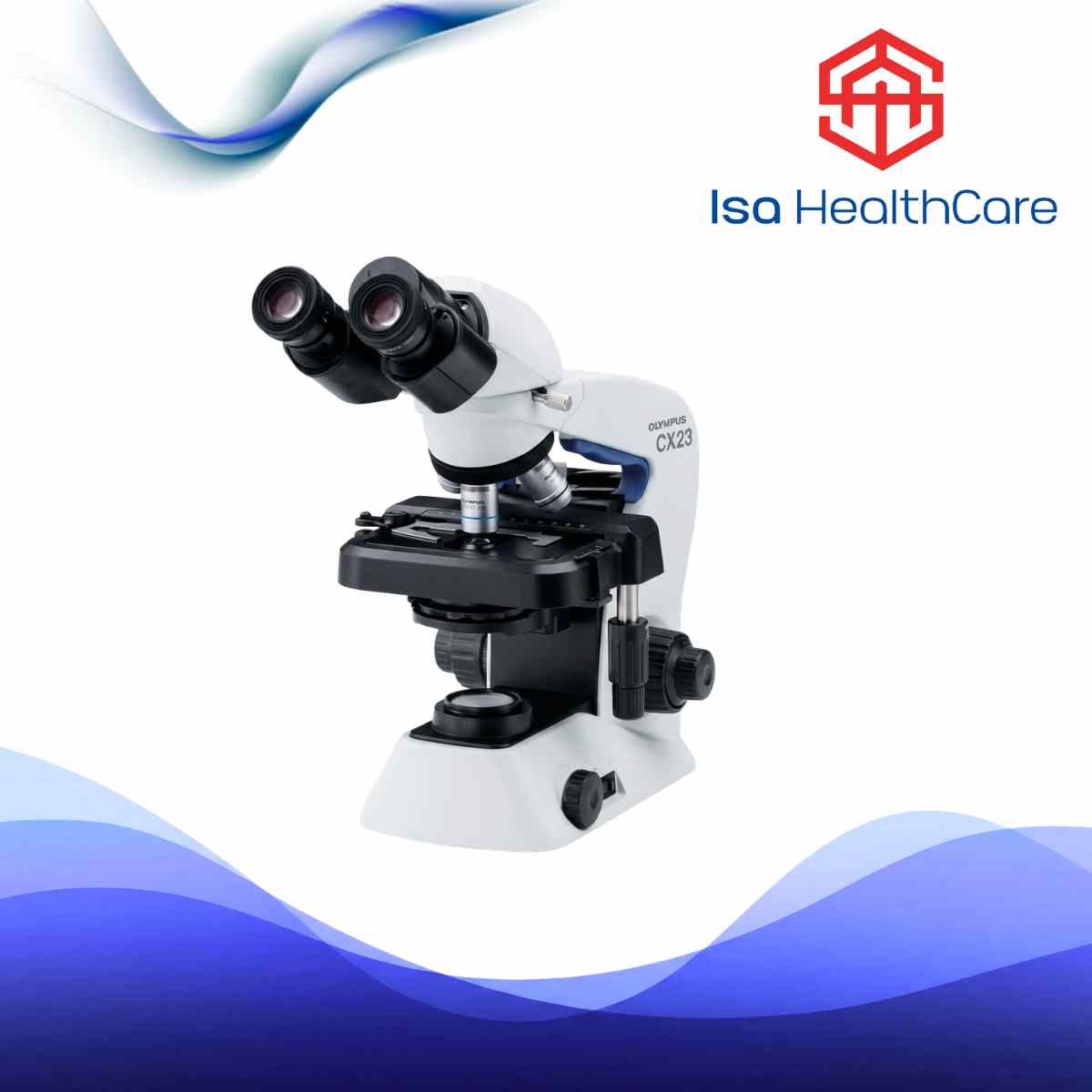

Olympus Microscope CX23 LED
Brand: Olympus Corporation
Origin: Japan

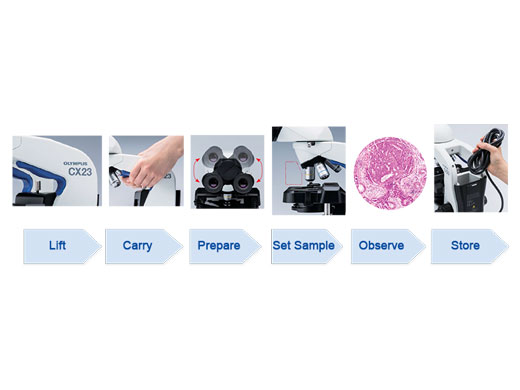

Built with students in mind, the CX23 microscope is not only durable but also reliable. It is easy to carry around the classroom because of these design elements:
– Small footprint
– Lightweight
– Ergonomic non-slip carrying grips
Safety features help ensure that the eyepieces, observation tube, objectives, and stage are protected from damage while it is transported or during prolonged and repeated use.
Clear Visualization with CX23 LED Olympus Microscope
CX-23 LED Biological Microscope is one of the most advanced instruments designed for observing biological specimens at a microscopic level. With its high-quality optics and LED illumination system, this microscope provides clear and detailed images of the smallest structures, allowing scientists and researchers to better understand the inner workings of living organisms.

Olympus microscope boasts an Abbe condenser NA 1.25 with oil immersion, making it a versatile tool for numerous applications. You can easily customize the angle of illumination, ensuring the best lighting for all kinds of specimens. Additionally, the CX23 LED comes with a built-in transmitted illumination system that uses cutting-edge LED technology to deliver bright and consistent illumination while utilizing a mere 0.5 W of power – a smart, energy-efficient choice that helps slash energy bills.
Olympus Microscope CX23 LED is built to stand up to whatever tasks are needed of it. Its resilient aluminum die-casting metal frame is designed to take any punishment, while the protective covering prevents dust, dirt, or debris from reaching its sensitive interior. The Olympus Microscope CX23 LED is a titan in the laboratory, consistently supplying superior results whether used for research, sample examination, or clinical assessments. Unparalleled in its performance, this microscope is guaranteed to satisfy, offering far more than just expectations. It is vastly used in diagnostic laboratories. It is an essential tool for exploring the fascinating world of biology.
| Observation Method | Brightfield | ✓ | |
|---|---|---|---|
| Darkfield | ✓ | ||
| Illuminator | Transmitted Illuminator | LED Lamp |
|
| Focus | Focusing Mechanism | Stage Focus | ✓ |
| Coarse Handle Stroke |
|
||
| Features | Coarse adjustment limit stopper Torque adjustment for coarse adjustment knob |
||
| Field Diaphragm | Binocular (Option: CX23-FS) | ✓ | |
| Trinocular | ✓ | ||
| Revolving Nosepiece | Manual | Standard (4 positions) | ✓ |
| Stage | Manual | Manual Stages with Right-Hand Control |
|
| Condenser | Manual | Abbe Conenser | NA 1.25/ W.D. – (4X–100X) (Built-in) |

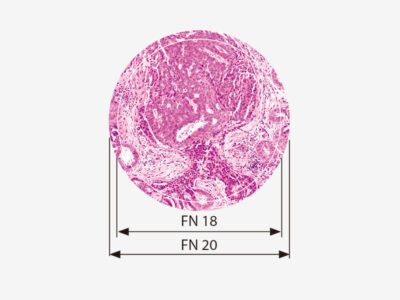

| Observation Tubes | Standard (FN20) | Binocular | ✓ |
| Trinocular | ✓ | ||
| Tube Inclination Angle |
|
||
| Trinocular Tube Light Path Selection (Camera : Observation) |
|
||
| Interpupillary Distance Adjustment |
|
||
| Dimensions (W × D × H) | Binocular: 198 (W) x 398 (D) x 386 (H) mm, Trinocular: 198 (W) x 398 (D) x 430 (H) mm | ||
| Weight | Approx. 5.9 kg |
