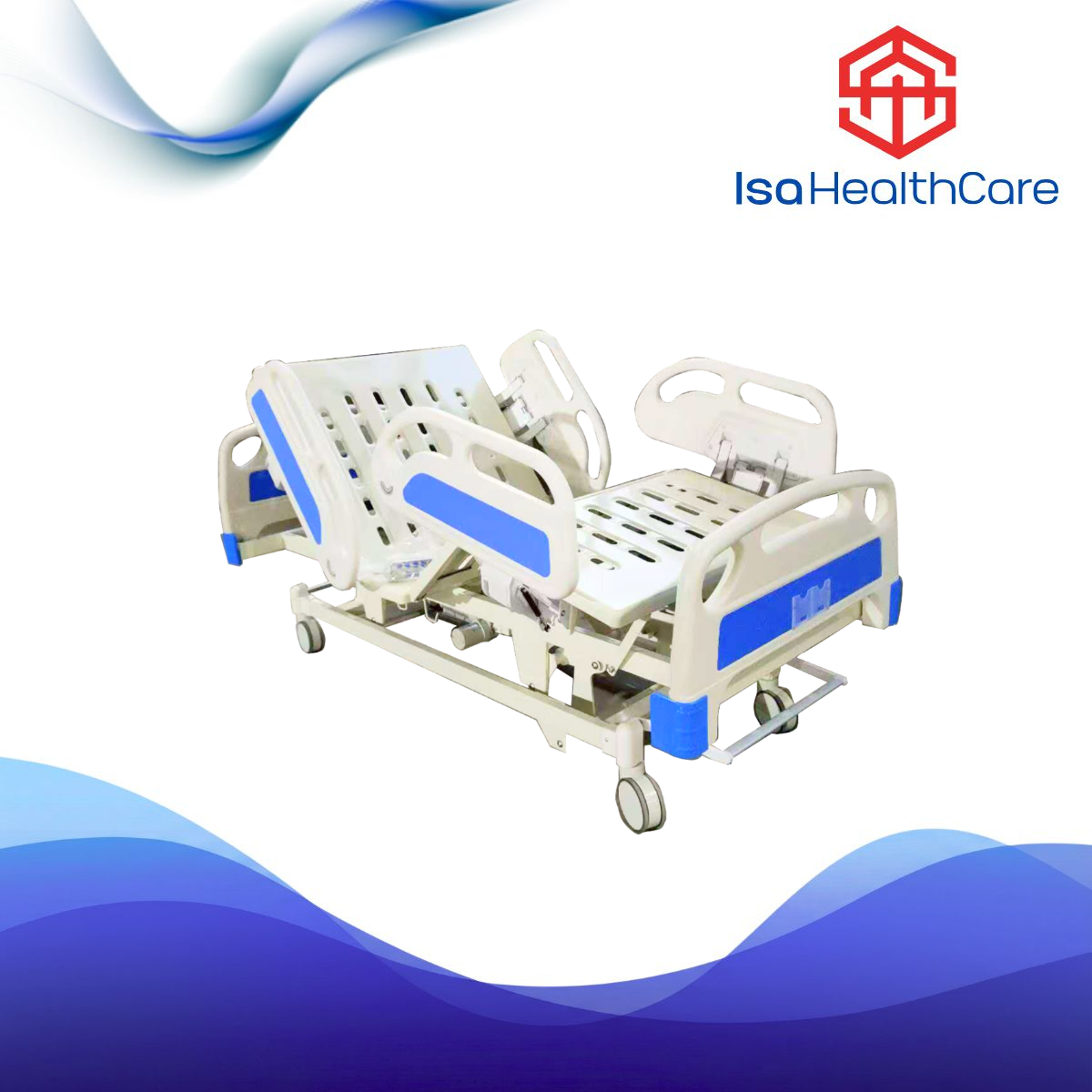

JEIDE Electric Hospital Bed (5 Function) JDC01-3
Product Description
The JEIDE JDC01-3 is the gold standard for electric medical beds, offering the versatility required for critical care environments. Unlike standard manual or 3-function beds, the JDC01-3 includes Trendelenburg and Reversed Trendelenburg positions, which are essential for managing blood pressure, facilitating surgical drainage, and improving respiratory function in high-dependency patients.
The bed is designed with both patient comfort and clinical hygiene in mind. The ABS head and footboards are quickly detachable for head-end access during procedures, while the integral stamping bed surface prevents the accumulation of bacteria often found in welded joints. The inclusion of the “Tuck Away” side rail system ensures the bed remains compact in tight ICU spaces while offering the highest level of fall protection. With its robust motor system and emergency CPR capability, the JDC01-3 is a reliable partner for modern healthcare facilities.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | JDC01-3 |
| Type | Electric 5-Function Hospital Bed |
| Overall Size | 2080 * 960 * 500-700 mm (±20mm) |
| Bed Surface Size | 1960 * 900 mm (±20mm) |
| Motor System | 4 x CE-Certified High-Performance Motors |
| Backrest Angle | 0 – 75° (±5°) |
| Leg Section Angle | 0 – 30° (±5°) |
| Height Adjustment | 500 mm to 700 mm |
| Trendelenburg / Rev. | ± 12° |
| Emergency Function | Electric CPR (One-touch flattening) |
| Weight Capacity | 260 kg |
| Bed Surface | Integral Stamping Surface |
| Side Rails | 4-Piece ABS Tuck Away Rails |
| Casters | Central Locking System (Pedal Controlled) |
| Frame Material | Cold Rolled Square Pipe |
| Included Accessories | IV Pole (4 Hooks) |
| Certifications | CE, ISO 9001, ISO 13485 |
0
People watching this product now!
Description
Description
The JEIDE JDC01-3 is a high-end, fully motorized electric hospital bed designed for Intensive Care Units (ICU) and premium patient care. Featuring a four-motor system, it provides complete control over backrest, legrest, height, and Trendelenburg positions. Equipped with an Electric CPR function and a central locking system, this bed combines clinical precision with maximum patient safety and caregiver efficiency.
Key Features
- 5-Function Motorized Control: Fully electric adjustment for Backrest (0-75°), Leg Section (0-30°), Height (500-700mm), Trendelenburg (±12°), and Reversed Trendelenburg (±12°).
- One-Touch Electric CPR: Features a dedicated electric CPR function that immediately flattens the bed to a horizontal position for emergency resuscitation.
- Four-Motor System: Driven by four CE-certified high-performance motors, ensuring smooth, quiet, and independent movement of all bed sections.
- Premium Integral Stamping Surface: The bed surface is manufactured using integral stamping, providing superior strength, durability, and a smooth finish that is easy to disinfect.
- Advanced Safety Rails: Equipped with 4-piece ABS “Tuck Away” side rails that provide full-length protection and slide under the bed frame for zero-gap patient transfers.
- Central Locking System: High-mobility casters controlled by a central braking system, allowing caregivers to lock or unlock all four wheels with a single pedal.
- Heavy-Duty Capacity: Engineered with a cold-rolled square pipe frame to safely support a working load of up to 260kg.
