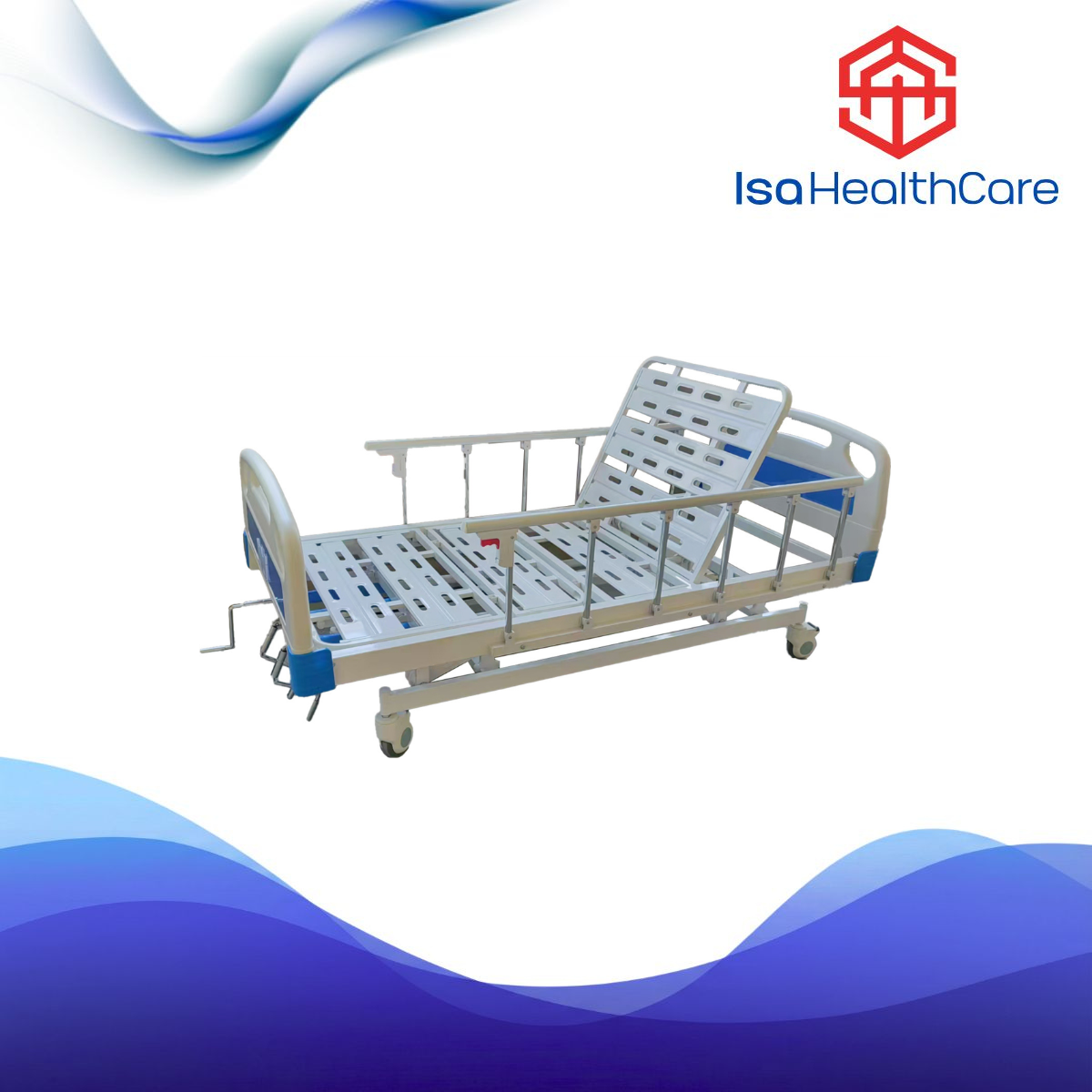

JEIDE Manual Hospital Bed (3 Function) JDC04-5
Product Description
The JEIDE JDC04-5 is an upgraded manual solution for hospitals and home care environments that require more than just standard positioning. The standout feature of the JDC04-5 is its height-adjustable (Hi-Low) capability, which is rare in manual beds and critical for ergonomic caregiving and patient mobilization.
The bed surface utilizes a welded C-plate design, ensuring excellent ventilation for the mattress and a rigid support structure for the patient. Mobility is handled by 125mm “mute” casters, allowing the bed to be moved silently through corridors, while independent brakes ensure it remains rock-steady during patient repositioning. With its professional-grade 6-bar side rails and overload-protected cranks, the JDC04-5 offers the reliability of a high-end medical bed with the simplicity of manual operation.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | JDC04-5 |
| Type | Manual 3-Function Hospital Bed |
| Overall Size | 2080 * 960 * 500-700 mm (±20mm) |
| Bed Surface Size | 1960 * 900 mm (±20mm) |
| Bed Frame Thickness | 1.2 mm |
| Height Adjustment Range | 500 mm to 700 mm |
| Backrest Angle | 0 – 75° (±5°) |
| Legrest Angle | 0 – 35° (±5°) |
| Maximum Working Load | 260 kg |
| Control System | Steel Folding Cranks with Overload Protection |
| Side Rails | 6-Bar Aluminum Alloy & Stainless Steel (400mm height) |
| Head & Footboard | Removable ABS Material |
| Casters | 125mm Single Side Mute Casters with Independent Brakes |
| Bed Surface | Welded C-plate |
| Accessories | IV Pole with 4 Hooks |
| Certifications | CE, ISO 9001, ISO 13485 |
0
People watching this product now!
Description
Description
The JEIDE JDC04-5 is a premium manual hospital bed offering three core functions: backrest adjustment, leg curving, and height adjustment (Hi-Low). Built with a reinforced 1.2mm steel frame and a 260kg weight capacity, this bed is designed for high-dependency patients who require adjustable bed heights to facilitate safer transfers and easier caregiving.
Key Features
- Triple Function Versatility: Manual control over backrest elevation (0-75°), leg curving (0-35°), and overall bed height adjustment (500mm to 700mm).
- High-Low Adjustment: The height-adjustable feature allows the bed to be lowered for safe patient entry/exit and raised to a comfortable height for caregivers to prevent back strain.
- Reinforced Frame: Features a 1.2mm thick bed frame and a welded C-plate surface, providing superior stability and a maximum working load of 260kg.
- Advanced Crank System: Equipped with steel folding cranks that feature Overload Protection, ensuring the internal mechanisms are not damaged by over-extension.
- Enhanced Safety Rails: Includes 6-bar aluminum alloy and stainless steel side rails with an increased height of 400mm for maximum patient protection.
- Durable ABS Design: The removable ABS head and footboards are impact-resistant and easy to clean, providing a modern medical aesthetic.
