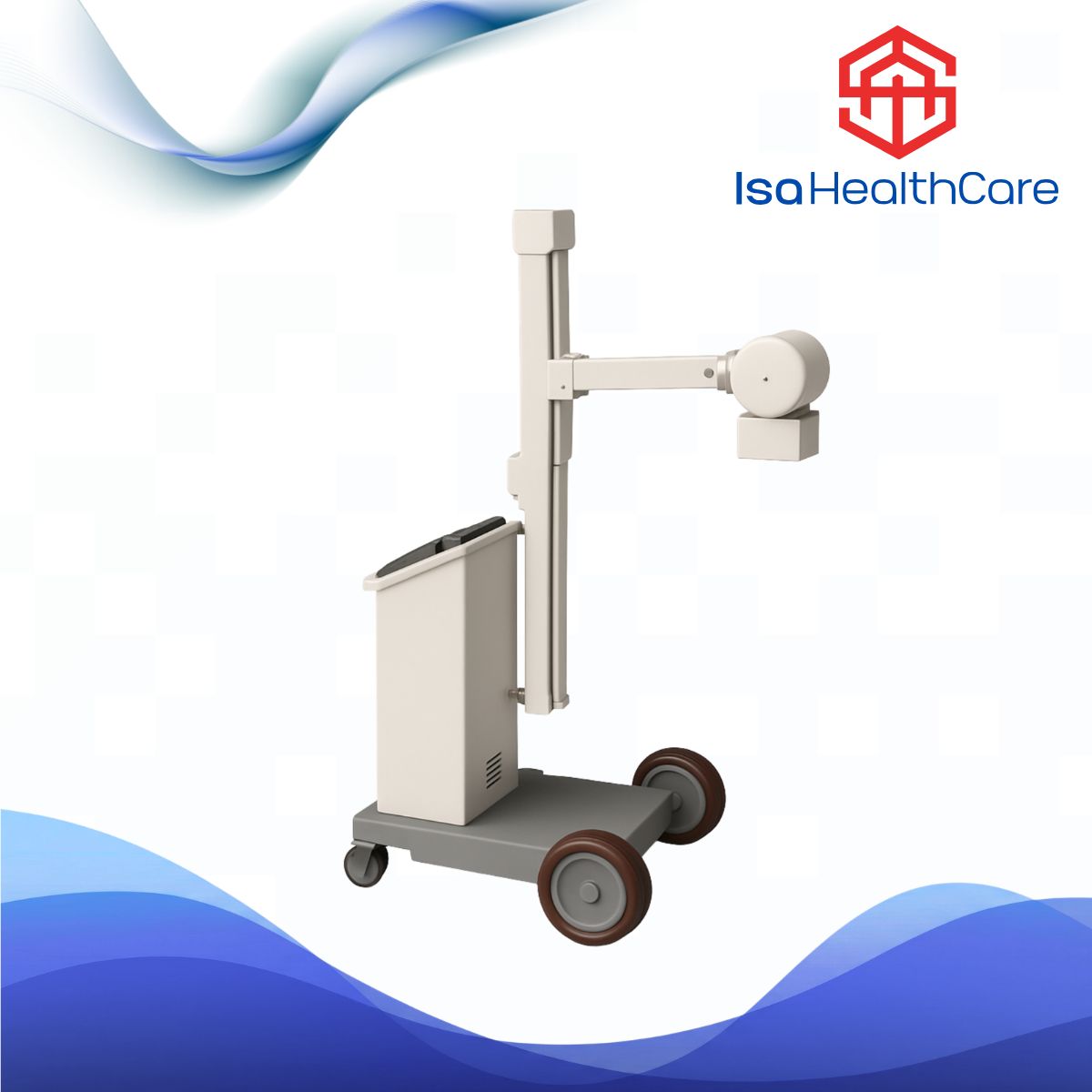

TRIUP Normal Frequency Mobile X-Ray (TRF-100)

TRF-100 Mobile X-Ray Machine: Reliable and Rugged for Point-of-Care Imaging
The TRF-100 Normal Frequency Mobile X-ray Unit is a robust and dependable solution designed for healthcare facilities that require flexible, on-demand imaging capabilities. Engineered for use in wards, operating rooms, accident fields, and mobile clinics, this unit delivers consistent performance for common radiography examinations. With its focus on operator safety, ease of movement, and reliable X-ray generation, the TRF-100 is an ideal choice for departments seeking a cost-effective mobile solution without compromising on essential features.

Designed with Operator and Patient Safety in Mind
Patient and staff safety is paramount in the design of the TRF-100.

• Wireless Remote Exposure: The unit features wireless remote exposure control, allowing technologists to step away from the primary radiation beam during imaging. This significantly reduces physician and technician radiation dose, aligning with ALARA (As Low As Reasonably Achievable) principles.
• Safe and Reliable Operation: Built with simplicity and reliability at its core, the unit is designed for safe, trouble-free operation in demanding clinical environments.

Stable and Consistent Imaging Performance
The TRF-100 utilizes proven technology to ensure that every image is of consistent diagnostic quality.

• Magnetism Saturation Manostat (Voltage Stabilizer): This model features a magnetism saturation manostat, which more effectively stabilizes the filament current. Unlike standard systems where current may fluctuate with tube voltage, this technology ensures that the mA remains steady, leading to better consistency and repeatability in radiography results.
• Bridge Rectification X-Ray Generator: By employing a bridge rectification X-ray generator, the system produces a more consistent X-ray beam, which contributes to clearer, higher-quality radiographic images.

Flexible Mechanical Movement for Easy Positioning
The TRF-100 is built to maneuver effortlessly and position precisely, even in tight spaces.

• Exceptional Range of Motion:
  • Generator Revolving: The X-ray generator can revolve vertically ±90° and horizontally ±180°, providing exceptional flexibility to target anatomy from virtually any angle.
  • Generator Rotation: The generator can move around the level axis ±180° and around the vertical axis ±180°, ensuring comprehensive coverage for bedridden or immobile patients.
• Wide Vertical Travel: The distance from the X-ray generator focus to the ground ranges from 810mm to 1790mm, accommodating a wide variety of table heights and patient positions.
• Compact and Mobile: Designed for excellent mobile operating performance, the unit is easy to remove, simple to operate, and orients exactly where needed, making it perfect for busy hospital corridors and crowded emergency rooms.

Technical Specifications

• Model: TRF-100
• Power Supply: 220V±10%, 50/60Hz
• Tube Voltage: 50~90 kV
• Tube Current: Selectable 15, 30, 60, 100 mA
• Exposure Time: 0.08~6.3 seconds
