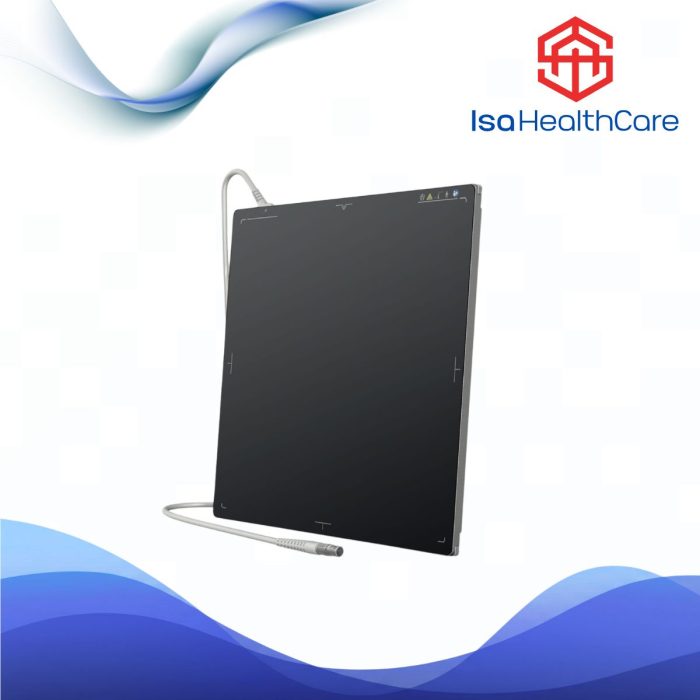

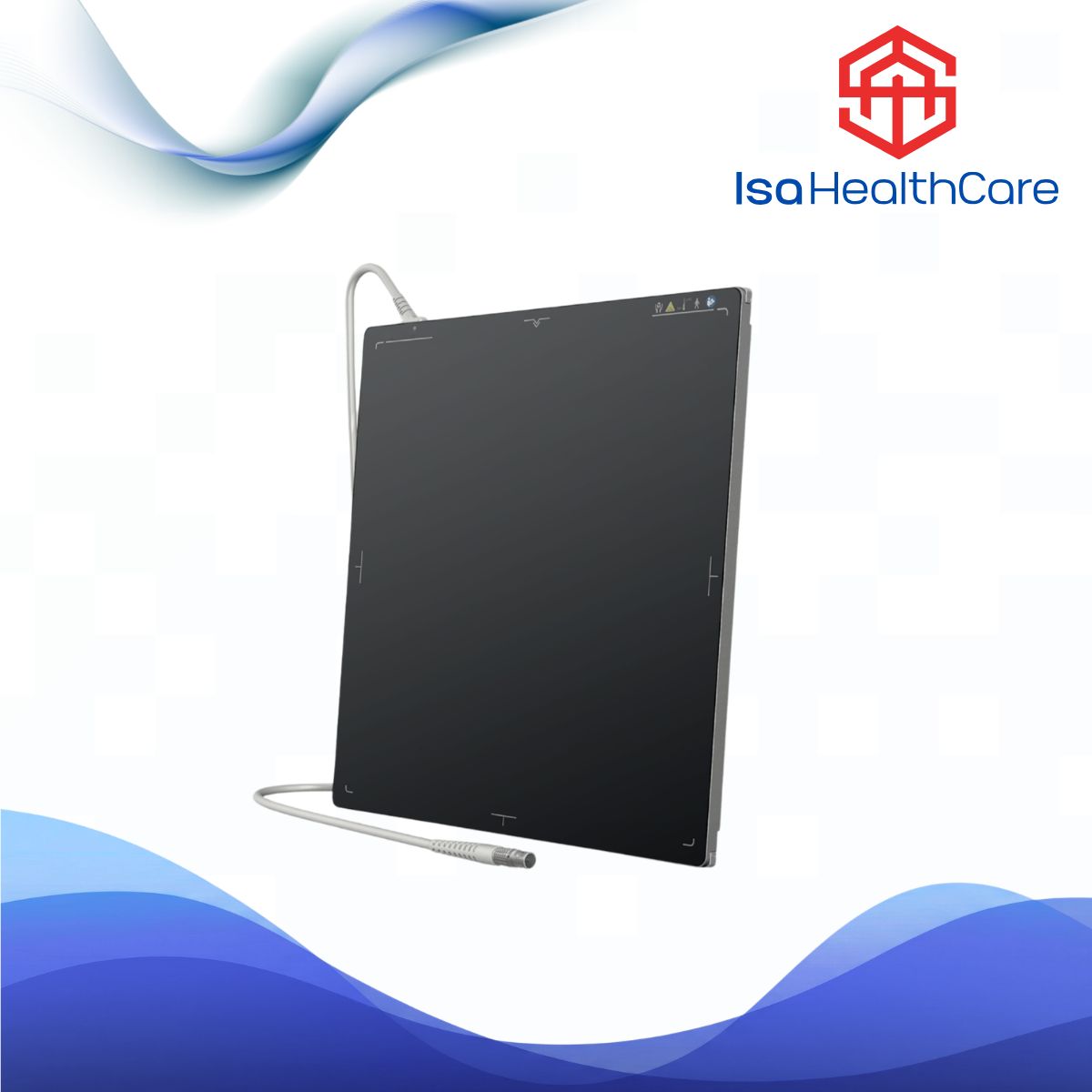

Triup Flat Panel Detector (FPD) 1717x

Triup 1717X 17×17 inch Wireless & Tethered DR Flat Panel Detector | High-Resolution Csi Sensor for Medical Imaging

Description: Upgrade your radiology department with the Triup 1717X, a high-performance 17×17 inch flat panel detector. Featuring a 139µm pixel pitch and 16-bit ADC, it delivers exceptional image quality for general radiography.

Product Description

Unlock Superior Image Quality with the Triup 1717X DR Detector

The Triup 1717X is a state-of-the-art, cassette-sized Flat Panel Detector (FPD) designed to meet the rigorous demands of modern radiographic imaging. Combining a large 17×1717×17-inch active area with advanced amorphous silicon technology, this detector is the perfect solution for high-end Digital Radiography (DR) systems seeking to balance workflow efficiency with exceptional diagnostic clarity.

Built with direct deposition Cesium Iodide (CsI), the 1717X ensures optimal X-ray absorption and minimizes light spread, resulting in sharp, high-contrast images even at lower radiation doses. Whether you are performing general exams or specialized procedures, this detector provides the reliability and performance you need to capture the critical details.

Key Features & Benefits

• Crystal Clear Imaging: The 139-micron pixel pitch, combined with a massive 3072×30723072×3072 pixel matrix and a 16-bit Analog-to-Digital Converter (ADC), delivers superior spatial resolution (3.6 lp/mm) and exceptional contrast detail.
• Innovative CsI Scintillator: Direct deposition Csl technology enhances image quality while enabling a significant reduction in patient radiation dose, supporting your ALARA (As Low As Reasonably Achievable) goals.
• Smart & Efficient Workflow: Equipped with reliable iSync+ Automatic Exposure Detection (AED) and multiple trigger modes (AED/Software/Prep), the 1717X minimizes retakes and streamlines your imaging process for a faster, more efficient workflow.
• Robust and Flexible Design: Housed in a durable, lightweight (4kg / 8.8 lbs) casing measuring only 15mm in thickness, it features a highly reliable, flexible tether for consistent power and data transmission. Its standard cassette size ensures seamless fit into existing bucky tables and wall stands.
• Fast Image Availability: With a preview time of just 3 seconds and a full image available in 5 seconds, the 1717X keeps your patient throughput high and examination times low.
