TRIUP 3.5 KW C-Arm Machine (HMC-35D)
Applications
Ideal for Orthopedic Surgery, Spinal Surgery, Urology, Traumatology, General Surgery, and Emergency Room procedures.
Technical Specifications
| Parameter | Specification |
| Generator Power | Max. 4.4kW / Normal 3.5kW |
| X-Ray Tube | Rotating Anode, Double Focus 0.6/1.5mm |
| Detector Type | Amorphous Silicon CsI, 20.48cm x 20.48cm |
| Display | 27″ LCD, 2560×1440 Resolution |
| C-Arm Rotation | ±270° |
| SID | 1050mm |
| Power Supply | 220V |
0
People watching this product now!
Description

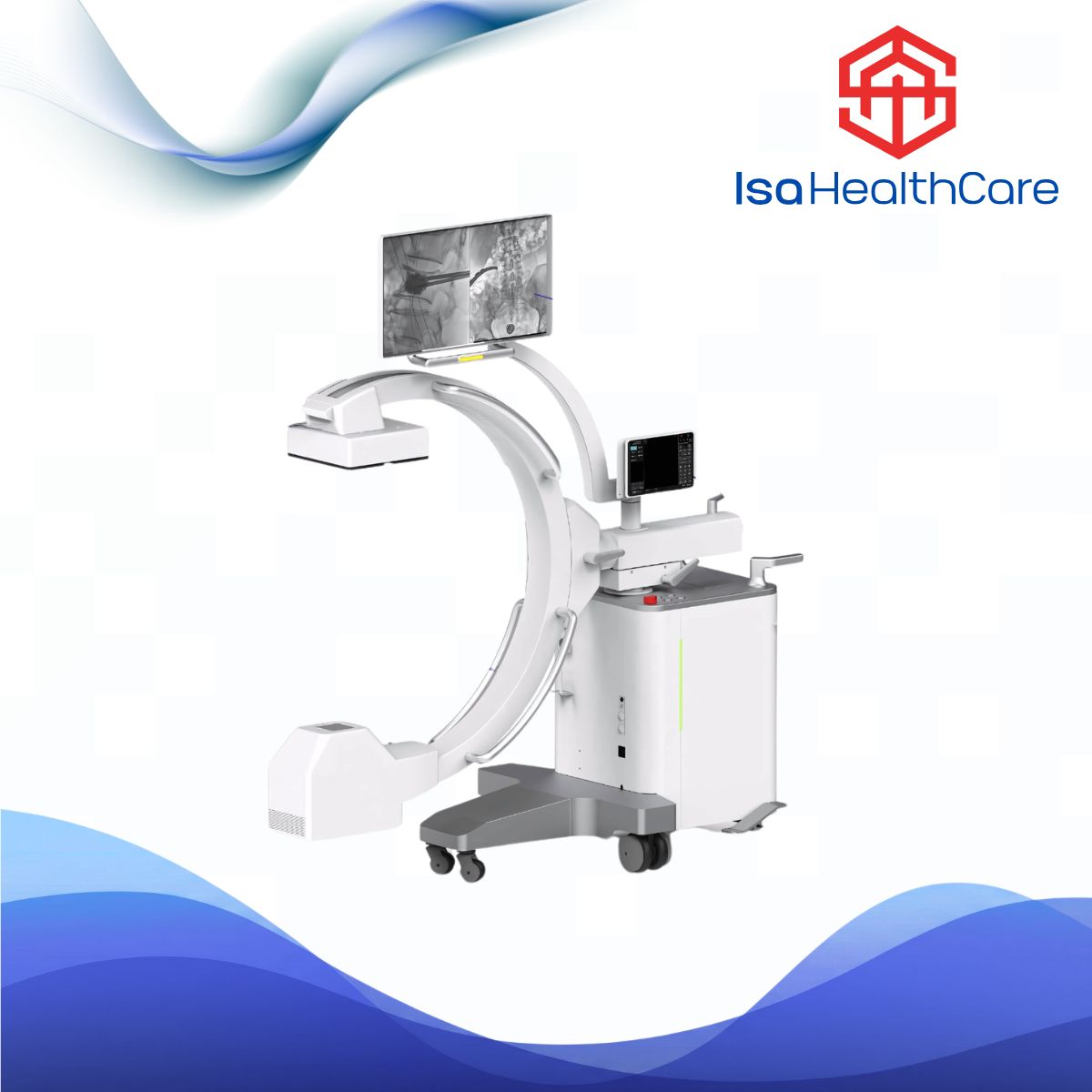

HMC-35D Mega-Pixel High-Frequency Mobile C-Arm
Description
The HMC-35D is a high-frequency mobile C-Arm system featuring a flat panel detector and mega-pixel imaging. Designed for precision in surgery and diagnostics, it delivers exceptional image quality for a wide range of procedures, from orthopedics to general surgery.
Key Features
- High-Resolution Imaging: Equipped with a 20.48cm x 20.48cm amorphous silicon CsI flat panel detector, offering a 1024×1024 pixel matrix and spatial resolution up to 2.5 LP/mm for crystal-clear visualization.
- Advanced Generator: High-frequency inverter (160-500kHz) with max. 4.4kW power. Wide kV range (40-125kV in 1kV steps) and versatile mA settings for both radiography and fluoroscopy.
- Digital Workstation: Integrated PC with a stunning 27″ LCD display (2560×1440 resolution). Includes image processing tools (zoom, measure, reversal) and seamless DICOM/PACS connectivity.
- Superior Mobility & Reach: Wide C-Arm movement range including ±270° rotation and 410mm vertical travel. Deep 700mm throat and 850mm opening distance provide excellent surgical access.
- Reliable & Convenient: Rotating anode tube for long life. Operates on standard 220V power supply for easy installation.
