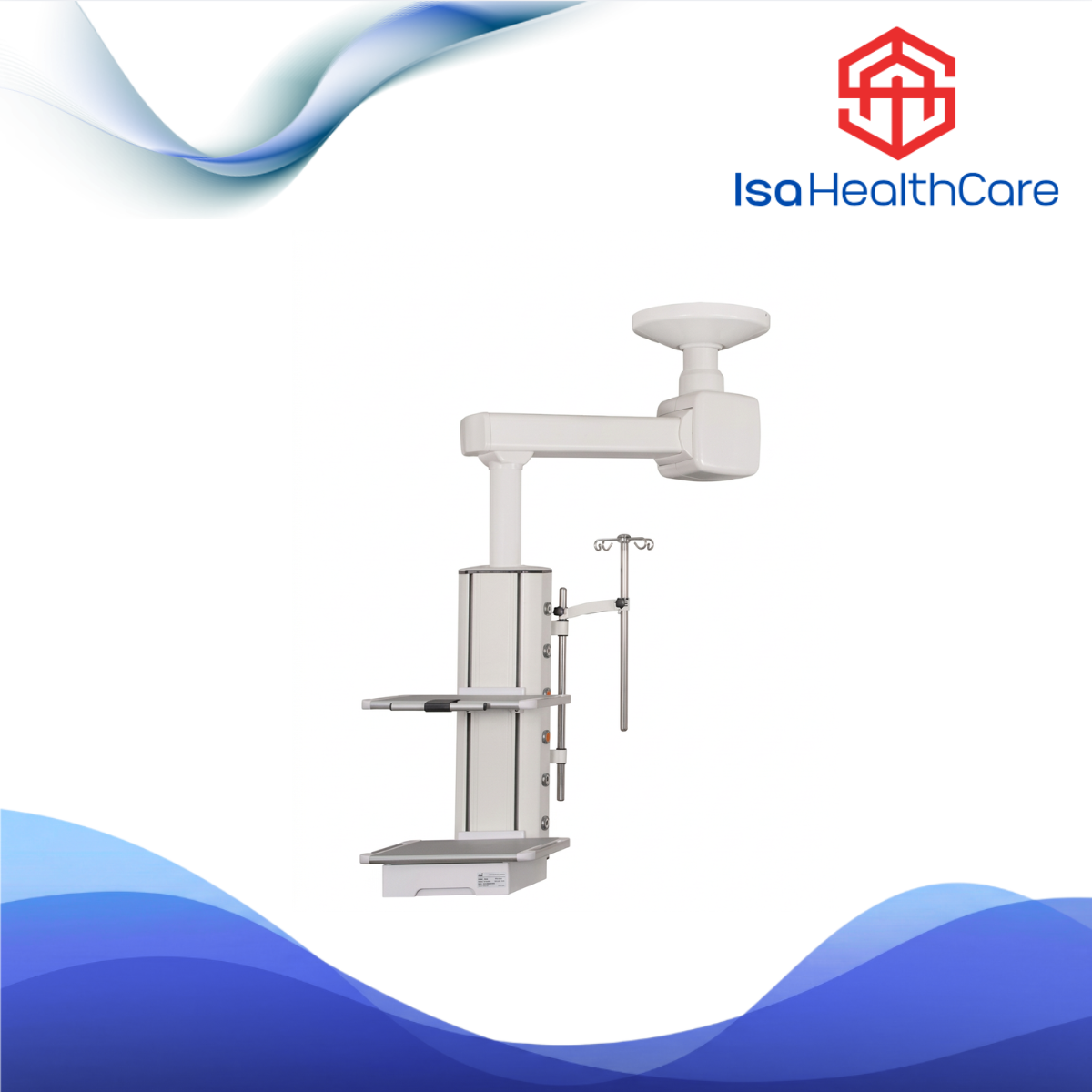

TRIUP Single Arm Mechanical Surgical Pendant TRDMP-05

Precision-engineered for high-demand surgical environments.

The TRDEP-05 is a ceiling-mounted, single-arm electrical surgical pendant designed to deliver reliable power, gas, and data management exactly where you need it. With a heavy-duty load capacity, smooth electrical lifting, and a clean, easy-to-sanitize design, this pendant optimizes OR workflow while maintaining the highest safety standards.

Key Features

Stable & Flexible Movement

• Wishbone motion range: ≥700mm (customizable)
• Rotation angle: 0–340° with rotation limit device to prevent drifting
• Electrical lift travel: ≥500mm for precise height adjustment
• Net load capacity: ≥70kg

Two-Layer Instrument Platform

• Dimensions: 550mm × 400mm × 30mm per tray (height adjustable)
• Load capacity per tray: ≥50kg
• Design: Primary pressing model, round-edge anti-collision design
• Standard side rail: 10mm × 25mm
• Surface treatment: Anti-corrosion and anti-rust

Integrated Gas & Network Outlets

• Gas outlets (configurable): O₂×2, VAC×2, AIR×2
  • Color-coded and shape-differentiated for instant identification
  • Cycle life ≥20,000 times
  • PVC flexible terminal tubes with distinct colors per gas type
• Network interface: 1× RJ45 (expandable)

Superior Build Quality

• Main body material: 6063 high-strength aluminum alloy
• Surface treatment: Electrostatic spraying, matte finish – anti-corrosion, easy to clean and disinfect
• Design highlights: No sharp corners, no exposed screws
• Gas-electric separation: Sealed joints for enhanced safety

Ceiling-mounted design provides superior stability and firmness compared to floor-mounted alternatives.

Power Requirement: AC220V, 50Hz
