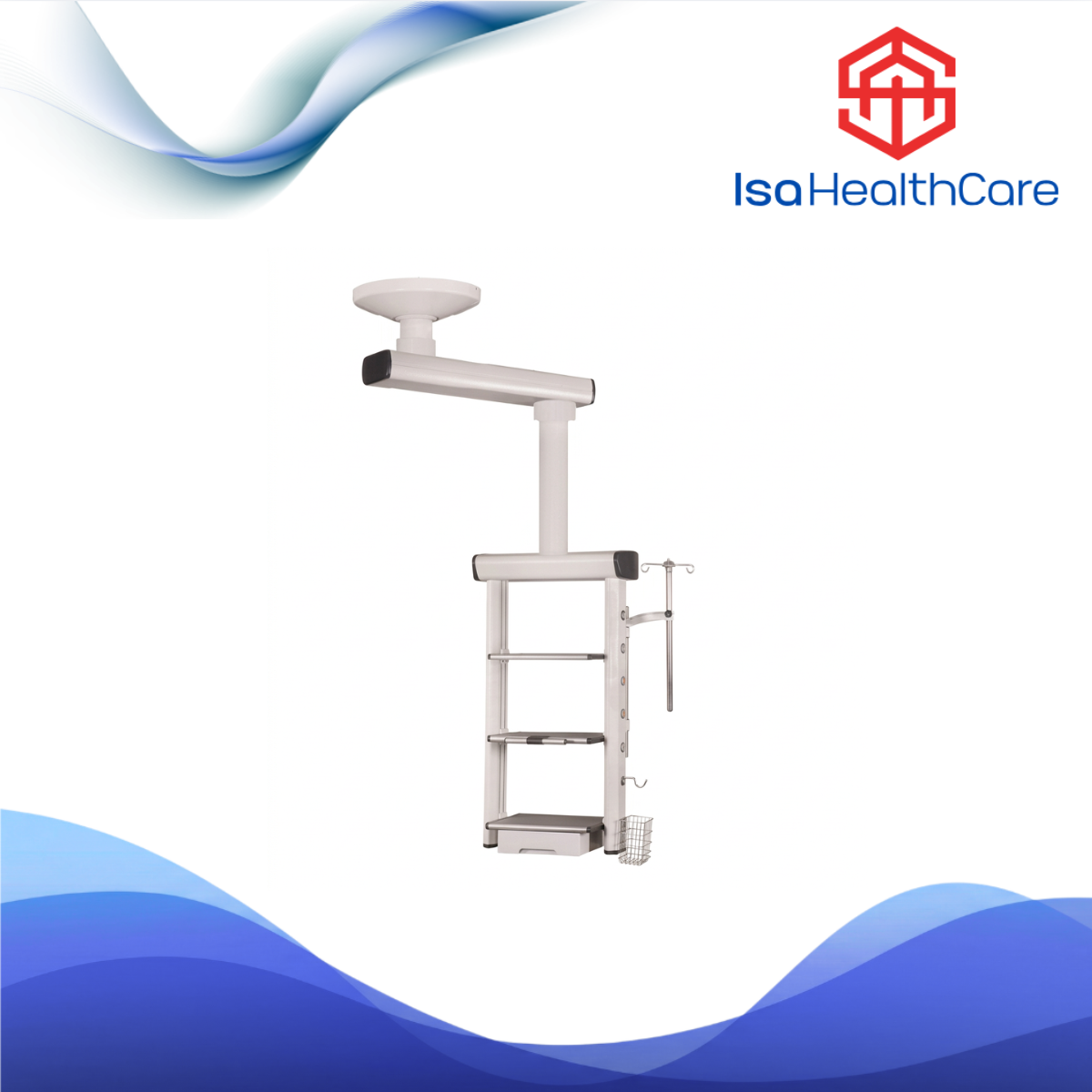

TRIUP Single Arm Electrical Endoscope Pendant TRDEP-16

Engineered for efficiency, safety, and precision in modern endoscopic procedures.

The TRDEP-16 is a ceiling-mounted, single-arm electrical endoscope pendant designed to streamline your operating room workflow. Combining robust load capacity with intelligent gas-electric separation, it provides a centralized, organized, and safe management system for endoscopes and related medical equipment.

Key Features

Stable & Flexible Movement

• Wishbone motion range: 700–1100mm (customizable)
• Rotation angle: 0–340° with a rotation limit device to prevent drifting
• Electrical lift travel: ≥500mm for optimal positioning
• Net load capacity: ≥70kg

Three-Layer Instrument Platform

• Dimensions: 550mm × 400mm × 30mm per tray (height adjustable)
• Load capacity per tray: ≥5kg
• Design: Primary pressing model, round-edge anti-collision design
• Standard side rail: 10mm × 25mm
• Surface treatment: Anti-corrosion and anti-rust

Integrated Gas & Data Outlets

• Gas outlets (configurable): O₂×2, VAC×2, AIR×2
  • Color-coded and shape-differentiated for easy identification
  • Cycle life ≥20,000 times
  • PVC flexible terminal tubes with distinct colors per gas type
• Network interface: 1× RJ45 (expandable)

Superior Build Quality

• Main body material: 6063 high-strength aluminum alloy
• Surface treatment: Electrostatic spraying, matte finish – anti-corrosion, easy to clean and disinfect
• Design highlights: No sharp corners, no exposed screws
• Gas-electric separation: Sealed joints for enhanced safety

Ceiling-mounted design ensures maximum stability and firmness in critical clinical environments.

Power Requirement: AC220V, 50Hz
Terminal box hanging column length: ≥1000mm
