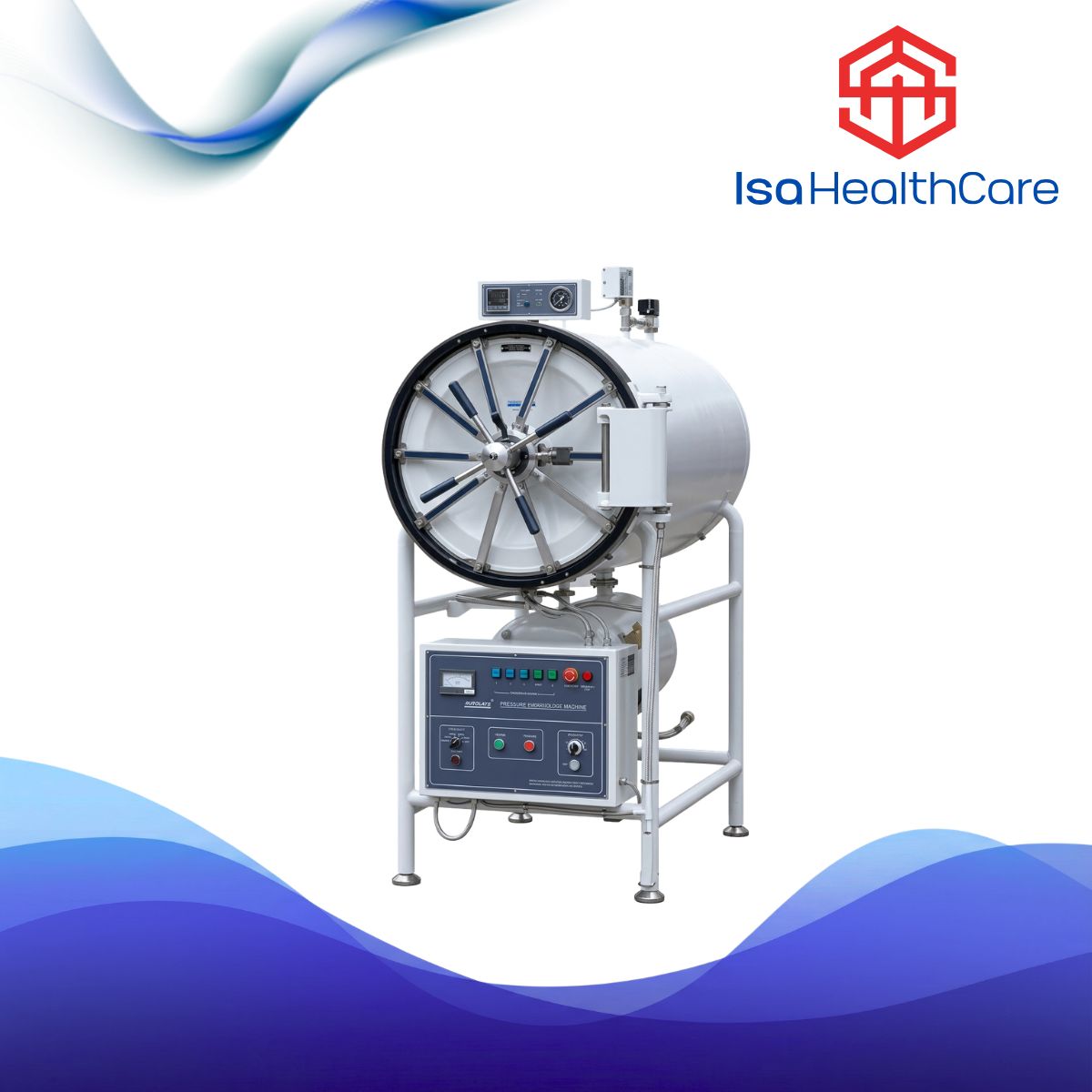

TRIUP Horizontal Cylindrical Pressure Steam Sterilizer (TRS-400YDA)
Technical Specifications
| Specification | Details |
| Model | TRS-400YDA |
| Type | Horizontal Cylindrical Pressure Steam Sterilizer |
| Sterilizing Chamber Volume | 400L |
| Working Pressure | 0.22Mpa |
| Working Temperature | 1340C |
| Temperature Adjustment | 40 to 1340C |
| Drying Time | 0 to 60 min |
| Power Supply | AC380V.50Hz/18KW |
| Chamber Material | Stainless Steel |
| Control Type | Automatic Sterilization Control |
| Safety Features | Door interlock, over-pressure protection, over-temperature protection, safety valve, low water protection |
Ideal Applications
- Hospitals & Clinics
- Dental Offices
- Surgical Centers
- Medical Laboratories
- Veterinary Clinics
- Beauty & Tattoo Studios
- Research Laboratories
Why Choose the TRS-400YDA?
The TRS-400YDA Horizontal Cylindrical Pressure Steam Sterilizer combines operational simplicity with robust safety features to deliver reliable sterilization performance day after day. The automatic control system minimizes user error, while the integrated drying function expands the range of materials that can be processed.
Safety is paramount in any sterilization environment. The TRS-400YDA’s comprehensive safety protections—including door interlock, over-pressure safety valve, and low water cut-off—provide peace of mind for operators and protect both personnel and instruments.
Built with a durable stainless-steel chamber, this sterilizer is designed for long-term use in demanding clinical and laboratory environments.
0
People watching this product now!
Description
The TRS-400YDA Horizontal Cylindrical Pressure Steam Sterilizer is a high-performance autoclave designed for reliable and efficient sterilization in medical, dental, laboratory, and clinical settings. Featuring an automatic sterilization control system, integrated drying function, and multiple safety protection mechanisms, the TRS-400YDA delivers consistent sterilization results while ensuring operator safety and instrument longevity.
Constructed with a stainless-steel sterilization chamber, this horizontal cylindrical sterilizer is ideal for processing surgical instruments, dressing packs, glassware, and other heat-stable medical devices.
Key Features
Automatic Sterilization Control
The TRS-400YDA features a fully automatic sterilization control system that simplifies operation and ensures consistent, repeatable sterilization cycles. Users can easily set parameters and let the unit manage the sterilization process from start to finish.
Integrated Drying Function
Built-in drying capability makes the TRS-400YDA ideal for processing dressings and fabric materials, ensuring items are not only sterilized but also dried and ready for use or storage.
Comprehensive Safety Protection
Designed with operator and equipment safety in mind, the TRS-400YDA incorporates multiple safety features:
- Door Interlock Safety: The door opening mechanism cannot be operated until the chamber pressure is reduced to 0.027 MPa, preventing accidental opening under pressure.
- Start Prevention: The sterilizer cannot be started if the door is not properly closed.
- Over-Temperature & Over-Pressure Protection: Automatic protection devices activate when temperature or pressure exceeds safe limits.
- Safety Valve Activation: The safety valve automatically opens when internal pressure exceeds 0.24 MPa, releasing steam safely into the water tank.
- Low Water Protection: Automatic power cut-off, water supply cut-off, and audible alarm activate when the machine detects insufficient water levels.
Durable Stainless-Steel Chamber
The sterilization chamber is constructed from high-quality stainless steel, providing excellent corrosion resistance, durability, and ease of cleaning—ensuring long-term reliable performance.
