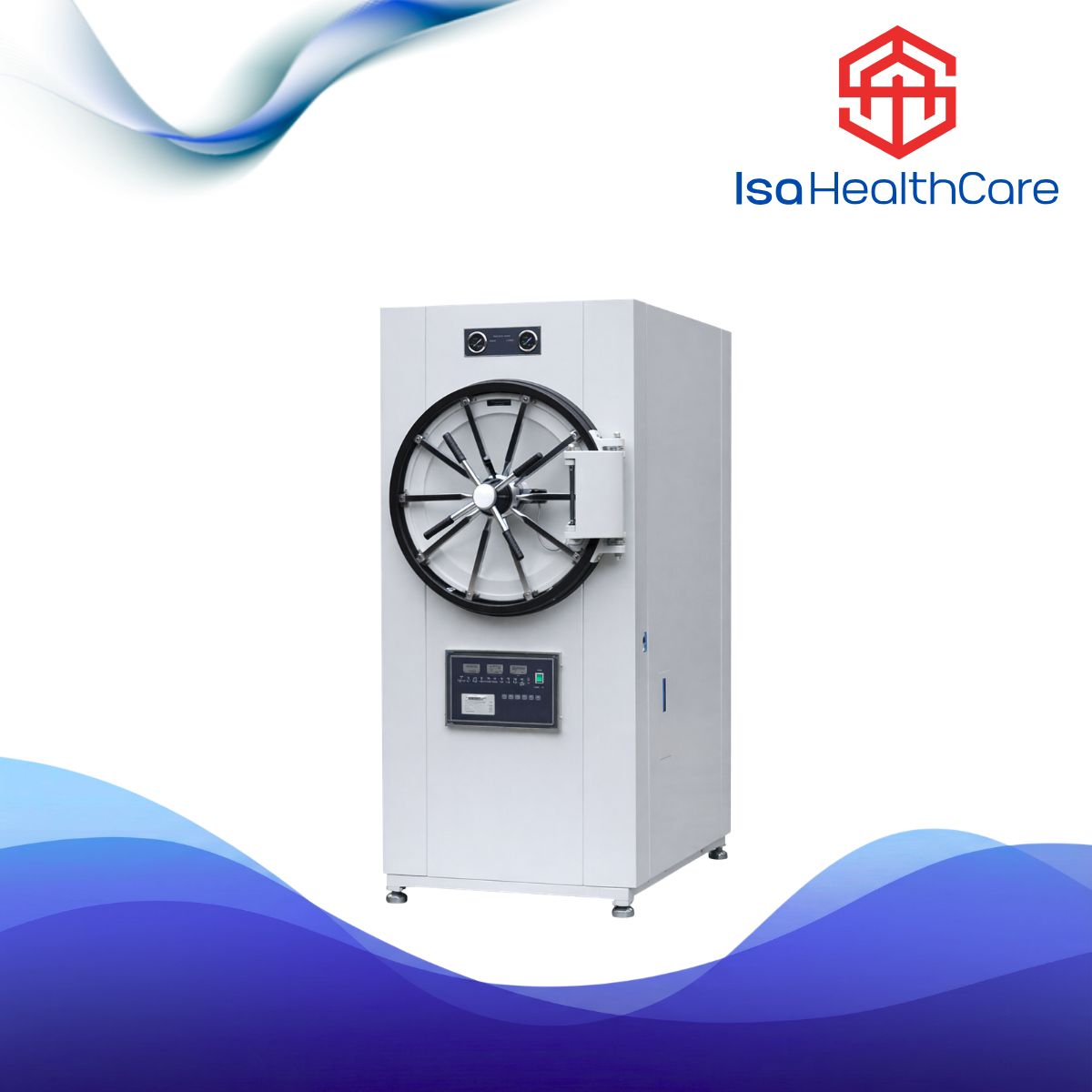

TRIUP Horizontal Cylindrical Pressure Steam Sterilizer (TRS-200YDB)
Technical Specifications
| Specification | Details |
| Model | TRS-200YDB |
| Type | Horizontal Cylindrical Pressure Steam Sterilizer (Microcomputer Control) |
| Sterilizing Chamber Volume | 200 L (φ515 × 1000 mm) |
| Working Pressure | 0.22 MPa |
| Working Temperature | 134°C |
| Temperature Adjustment Range | 40–134°C |
| Sterilization Time | 0–99 minutes (adjustable) |
| Drying Time | 0–99 minutes (adjustable) |
| Heat Average | ≤ ±2°C |
| Power Supply | AC 380V, 50Hz, 9KW |
| Overall Dimensions | 1400 × 750 × 1700 mm |
| Package Dimensions | 1560 × 910 × 1880 mm |
| Net Weight | 350 kg |
| Chamber Material | Stainless Steel |
| Control Type | Microcomputer-controlled automatic sterilization |
| Printer | Built-in for cycle documentation |
| Drying Function | Yes |
| Safety Features | Door interlock, over-pressure protection, over-temperature protection, safety valve, low water protection |
Ideal Applications
- Hospitals & Surgical Centers
- Central Sterile Services Departments (CSSD)
- Dental Clinics & Oral Surgery Centers
- Medical & Research Laboratories
- Veterinary Clinics & Animal Research Facilities
- Pharmaceutical Manufacturing
- Industrial Sterilization Applications
Why Choose the TRS-200YDB?
The TRS-200YDB Horizontal Cylindrical Pressure Steam Sterilizer is engineered for high-volume sterilization with precision control and full documentation. The microcomputer control system simplifies operation while ensuring consistent, repeatable sterilization cycles, and the integrated printer provides essential documentation for regulatory compliance and quality assurance.
With a large 200-liter stainless steel chamber, this sterilizer is capable of handling substantial workloads, making it an ideal choice for busy central sterile services departments, surgical centers, and laboratories. The drying function expands processing capabilities to include dressings and fabrics, while comprehensive safety protections ensure operator safety and equipment longevity.
Built with a durable stainless-steel chamber and backed by robust safety features, the TRS-200YDB delivers the reliability, capacity, and documentation that modern healthcare and laboratory facilities demand.
0
People watching this product now!
Description
Advanced Steam Sterilization with Precision Control and Documentation
The TRS-200YDB Horizontal Cylindrical Pressure Steam Sterilizer is a high-capacity, microcomputer-controlled autoclave designed for reliable and efficient sterilization in hospitals, surgical centers, laboratories, and industrial settings. Featuring a 200-liter stainless steel chamber, automatic sterilization control, integrated drying function, and a built-in printer for cycle documentation, the TRS-200YDB delivers consistent sterilization results while ensuring operator safety and compliance with record-keeping requirements.
With a working temperature of 134°C, adjustable sterilization and drying cycles, and comprehensive safety protection mechanisms, this horizontal cylindrical sterilizer is ideal for processing large volumes of surgical instruments, dressing packs, glassware, and other heat-stable medical devices.
Key Features
Microcomputer Control with Automatic Sterilization
The TRS-200YDB features a microcomputer-controlled sterilization system that automates the entire sterilization process. Users can easily set parameters, and the system manages the cycle from start to finish, ensuring consistent, repeatable results with minimal operator intervention.
Integrated Drying Function
Built-in drying capability allows the TRS-200YDB to process dressings, fabrics, and other moisture-sensitive materials, ensuring items are not only sterilized but also dried and ready for immediate use or storage.
Built-in Printer for Documentation
The integrated printer provides detailed cycle documentation, including sterilization parameters, temperature, pressure, and cycle times—essential for compliance with regulatory standards and quality assurance protocols.
Large 200-Liter Stainless Steel Chamber
- Chamber volume: 200 liters (φ515 × 1000 mm)
- Constructed from high-quality stainless steel for superior corrosion resistance, durability, and easy cleaning
- Ideal for high-volume sterilization needs in busy clinical and laboratory environments
Comprehensive Safety Protection
Designed with operator and equipment safety in mind, the TRS-200YDB incorporates multiple safety features:
- Door Interlock Safety: The door cannot be opened until chamber pressure is reduced to 0.027 MPa, preventing accidental opening under pressure.
- Start Prevention: The sterilizer cannot start if the door is not properly closed.
- Over-Temperature & Over-Pressure Protection: Automatic protection devices activate when temperature or pressure exceeds safe limits.
- Safety Valve Activation: Automatically opens when internal pressure exceeds 0.24 MPa, releasing steam safely into the water tank.
- Low Water Protection: Automatic power cut-off, water supply cut-off, and audible alarm activate when water levels are insufficient.
Precise Temperature Control
- Working temperature: 134°C
- Adjustable temperature range: 40–134°C
- Heat average: ≤ ±2°C for consistent sterilization throughout the chamber
Flexible Cycle Programming
- Sterilization time: Adjustable 0–99 minutes
- Drying time: Adjustable 0–99 minutes
- Allows customization for different load types and requirements
