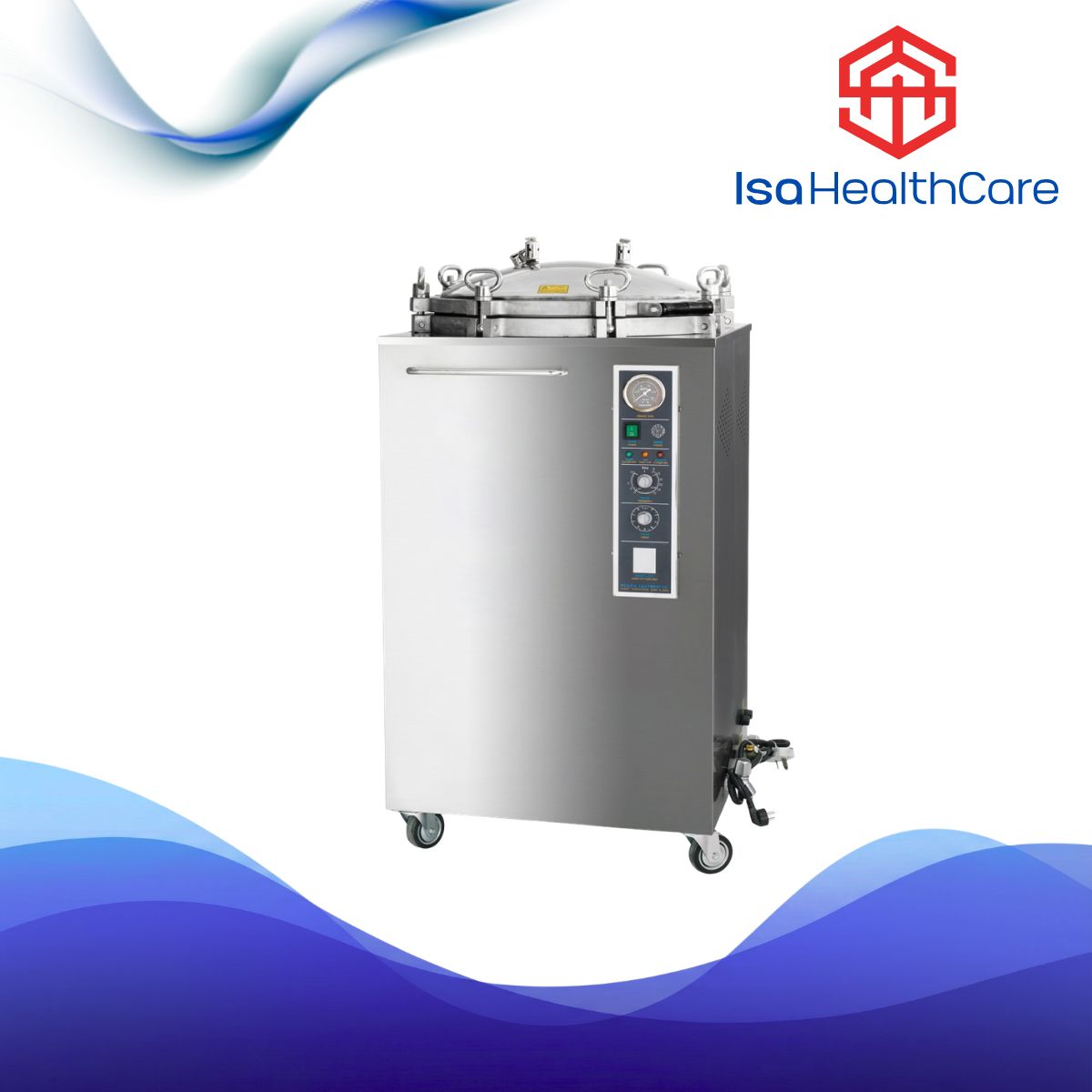

TRIUP Vertical Pressure Steam Sterilizer (TRS-H120L)
Technical Specifications
| Specification | Details |
| Model | TRS-H120L |
| Type | Horizontal Steam Sterilizer |
| Volume | 120 L |
| Chamber Size | Φ460 × 760 mm |
| Chamber Material | SUS304 Stainless Steel |
| Working Temperature Range | 115–129°C |
| Working Pressure Range | 0.145–0.165 MPa |
| Sterilization Time Range | 0–80 minutes |
| Power Supply | AC 220V, 50Hz, 4.0 KW |
| Packing Dimensions | 66 × 67 × 121 cm |
| Gross Weight / Net Weight | 97 kg / 75 kg |
| Pressure Gauge | Dual-scale indicator |
| Status Indicators | Light indicators for working status |
| Safety Features | Water lack protection, over pressure discharge, over current protection, over temperature protection |
Ideal Applications
- Hospitals & Surgical Centers
- Dental Clinics & Oral Surgery
- Medical & Research Laboratories
- Veterinary Clinics
- Beauty & Tattoo Studios
- Pharmaceutical & Industrial Settings
Why Choose the TRS-H120L?
The TRS-H120L Horizontal Steam Sterilizer combines durable SUS304 stainless steel construction with intuitive controls and comprehensive safety features to deliver reliable sterilization performance day after day. The adjustable sterilization temperature and time allow operators to customize cycles for different load types, from surgical instruments to glassware and laboratory equipment.
Safety is paramount in any sterilization environment. The TRS-H120L’s multiple protection systems—including water lack protection, over pressure discharge, and over temperature protection—provide peace of mind for operators and protect both personnel and valuable instruments.
With a 120-liter capacity, this sterilizer is well-suited for busy clinical and laboratory settings requiring dependable, high-volume sterilization.
0
People watching this product now!
Description
Reliable, High-Quality Steam Sterilization for Demanding Environments
The TRS-H120L Horizontal Steam Sterilizer is a robust, high-capacity autoclave designed for efficient and reliable sterilization in hospitals, clinics, laboratories, and dental practices. Featuring a 120-liter stainless steel chamber constructed from high-quality SUS304 stainless steel, this sterilizer delivers consistent performance with a user-friendly interface that allows operators to set sterilization temperature and time according to specific load requirements.
Equipped with comprehensive safety protections—including water lack auto-protection, over pressure auto-discharging, over current auto-protection, and over temperature auto-protection—the TRS-H120L ensures safe operation while protecting both personnel and instruments. A dual-scale pressure gauge and light indicators provide clear, at-a-glance status updates throughout the sterilization cycle.
Key Features
High-Quality SUS304 Stainless Steel Construction
The sterilization chamber is constructed from SUS304 stainless steel, a premium material known for its excellent corrosion resistance, durability, and ease of cleaning. This ensures long-term reliable performance even in demanding clinical and laboratory environments.
Dual-Scale Pressure Gauge
The dual-scale pressure gauge provides clear visualization of chamber pressure in multiple units, allowing operators to monitor sterilization conditions at a glance.
Light Indicators for Working Status
Intuitive light indicators clearly display the sterilizer’s working status, making it easy to determine when cycles are in progress, complete, or if attention is required.
Adjustable Sterilization Temperature and Time
Operators can set sterilization temperature and sterilization time to match the specific requirements of different loads:
- Temperature range: 115–129°C
- Time range: 0–80 minutes
Comprehensive Safety Protection
The TRS-H120L incorporates multiple safety features to ensure reliable and safe operation:
- Water Lack Auto-Protection: Automatically interrupts operation when water levels are insufficient, preventing damage and ensuring cycle integrity.
- Over Pressure Auto-Discharging: Automatically releases excess pressure when safe limits are exceeded.
- Over Current Auto-Protection: Protects electrical components from damage due to power surges.
- Over Temperature Auto-Protection: Prevents unsafe temperature conditions by automatically interrupting operation.
