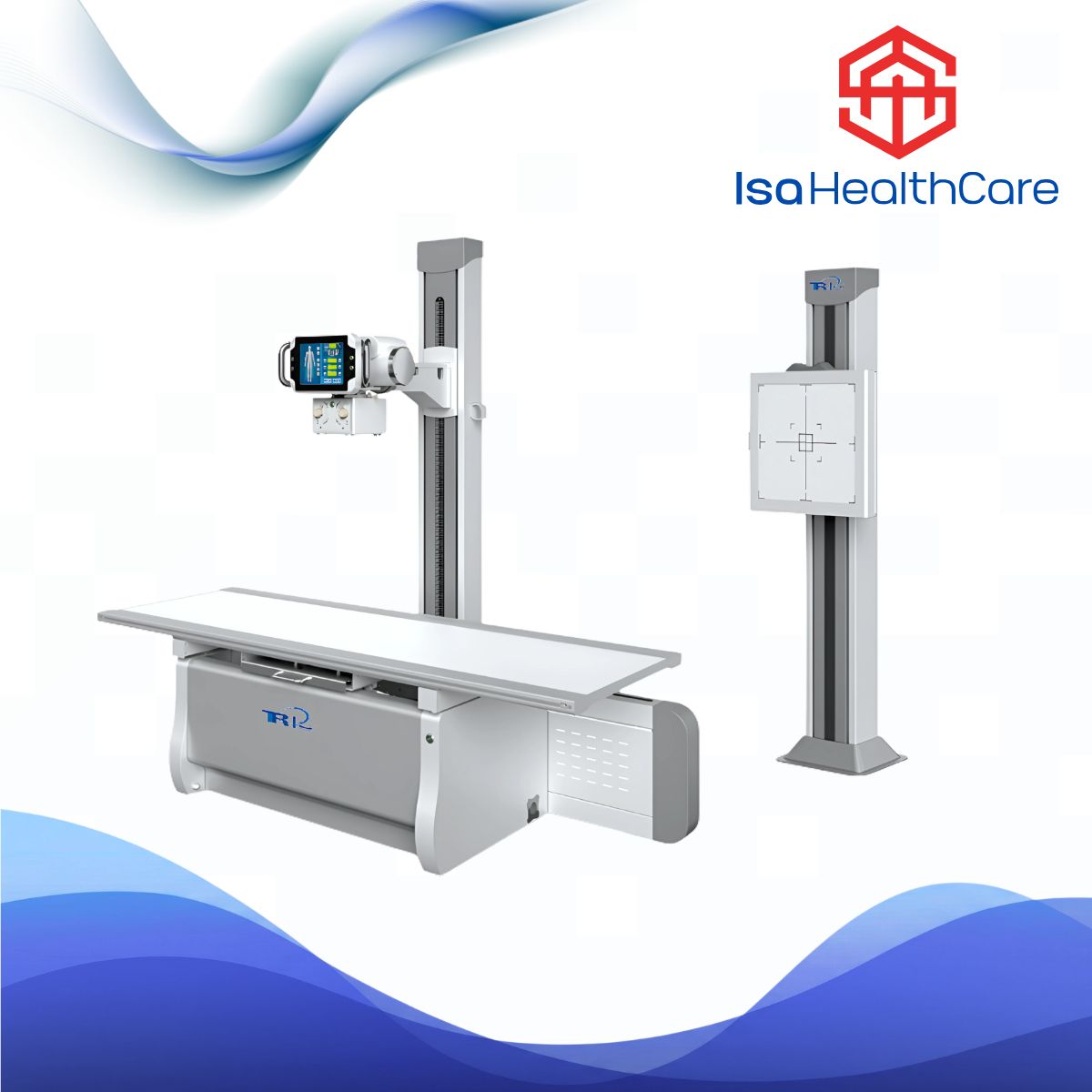

TRIUP 500mA High Frequency X-Ray Machine (TR-50H)
Main Technical Specifications
| Parameter | Details |
| Model | TR-50H |
| Power Supply | AC380V ±10%, 50/60Hz (AC220V optional) |
| Working Frequency | 400kHz |
| Max Output Power | 40kW |
| X-Ray Tube Component | X-ray Tube (Canon), rotating anode, dual focus: 1.0mm / 2.0mm |
| Anode Heat Storage | 140KHU |
| kV Range | 40kV – 125kV |
| mA Range (Radiography) | 10mA – 500mA |
| mA Range (Other) | 0.1mA – 400mA |
| Exposure Time | 0.002s – 6.3s |
| Radiographic Table | 2100×825×655mm, longitudinal travel ≥825mm, horizontal ≥250mm |
| Tube Stand Travel | Longitudinal ≥1575mm, horizontal rotation ±180°, vertical rotation ±90° |
| Focus-to-Film Distance | ≥1200mm |
| Locking Mechanism | Electromagnetic lock |
| X-Ray Grid | Fixed, 103 L/inch, ratio 10:1, focus distance 1000mm |
| Vertical Travel | ≥1000mm, min floor-to-focus ≤800mm |
| Film Size | Up to 17″×17″ |
0
People watching this product now!
Description
Product Overview
The TR-50H high-performance radiographic systems designed for medical imaging facilities seeking reliable, precise, and flexible X-ray solutions. With a powerful 40kW output, 125kV maximum tube voltage, and 500mA tube current, these systems deliver exceptional image quality for a wide range of diagnostic procedures. The TR50H-DR model adds digital imaging capabilities with optional wired or wireless flat panel detectors.
Key Features
- Dual Power Compatibility – Operates on AC380V standard, with an optional energy-storage device for AC220V operation.
- Advanced Control Technology – Simulation and digital double-loop accuracy control ensures consistent image quality.
- High-Precision Timing & Current Control – Exposure time from 0.002s to 6.3s, with mA ranges of 10–500mA (radiography) and 0.1–400mA.
- Versatile Radiography Settings – Multiple preset modes for adult and pediatric exams across different body parts and positions.
- Self-Protection & Self-Diagnosis – Built-in safety features protect the system and extend component life.
- User-Friendly Console – Lightweight, compact, with digital display and 48 automatic program radiography presets.
- High-Frequency Generator – Operates at 400kHz for stable, efficient power delivery.
