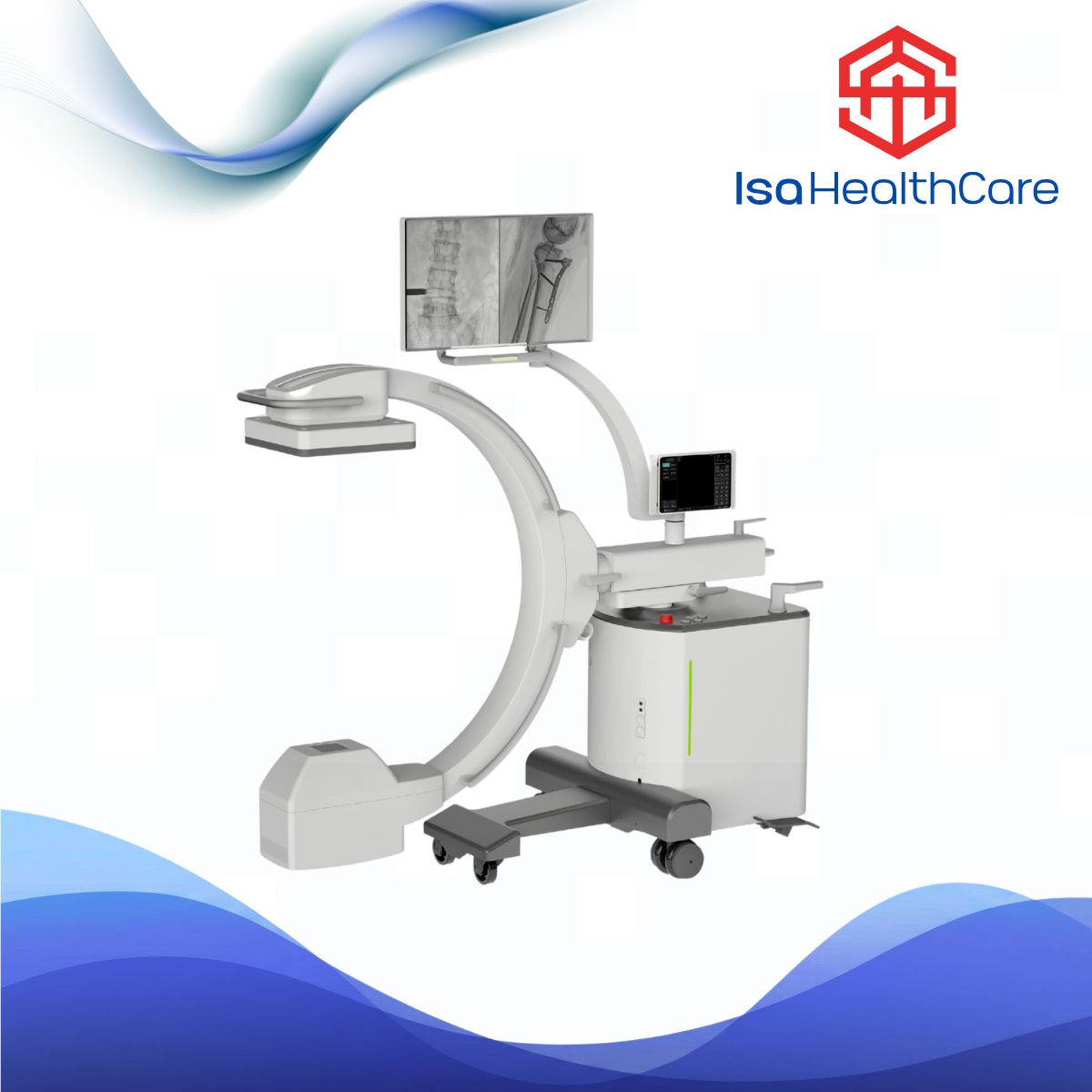

TRIUP 16KW C-Arm Machine (HMC-160D)
Applications
Ideal for Orthopedic Surgery, Spinal Surgery, Urology, Traumatology, General Surgery, Abdominal Surgery, Chest Surgery, and Peripheral Angiography (with DSA option).
Technical Specifications
| Parameter | Specification |
| Generator Power | Max. 16kW |
| Voltage Range | 40kV ~ 130kV (1kV/step) |
| Current Range | 10mA ~ 200mA |
| X-Ray Tube | Rotating Anode, Dual Focus 0.3mm/0.6mm (200kHU) |
| Detector Type | Amorphous Silicon CsI, 30.7cm x 30.7cm (150μm pixel) |
| Display | 27″ LCD, 2560×1440 Resolution |
| C-Arm Rotation | ±270° |
| C-Arm Depth / Open Distance | 700mm / 850mm |
| SID | 1050mm |
| Optional Function | DSA (Digital Subtraction Angiography) |
| Power Supply | 220V |
1
People watching this product now!
Description
HMC-160D 16kW High-Power Mobile C-Arm with Large Flat Panel Detector
Description
The HMC-160D is a high-performance mobile C-Arm system built for advanced surgical and interventional procedures. With its powerful 16kW generator and large-format flat panel detector, it delivers exceptional image clarity for both routine and complex cases, including optional DSA functionality for peripheral angiography.
Key Features
- High-Power 16kW Generator: Delivers consistent, high-output performance for demanding fluoroscopy and radiography applications. Wide voltage range (40-130kV) and current range (10-200mA) for optimal dose management.
- Large Flat Panel Detector: Features a 30.7cm x 30.7cm amorphous silicon CsI detector with fine 150μm pixel size, providing a larger field of view and outstanding image detail (2.5 LP/mm spatial resolution).
- Optional DSA Capability: Can be equipped with Digital Subtraction Angiography (DSA) function, making it suitable for peripheral angiography, limb angiography, and organ angiography.
- High-Performance X-Ray Tube: Rotating anode tube with dual focal spots (0.3mm/0.6mm) and a robust 200kHU anode heat capacity, ensuring reliability during lengthy procedures.
- Advanced Digital Workstation: Integrated PC with a 27″ high-definition LCD monitor (2560×1440 resolution). Full image processing tools, DICOM connectivity, and PACS integration for seamless workflow.
- Superior Mobility & Access: Smooth C-Arm positioning with ±270° rotation, 420mm vertical travel, and a deep 700mm throat for excellent surgical access.
- Convenient Operation: Reliable performance on standard 220V power supply.
