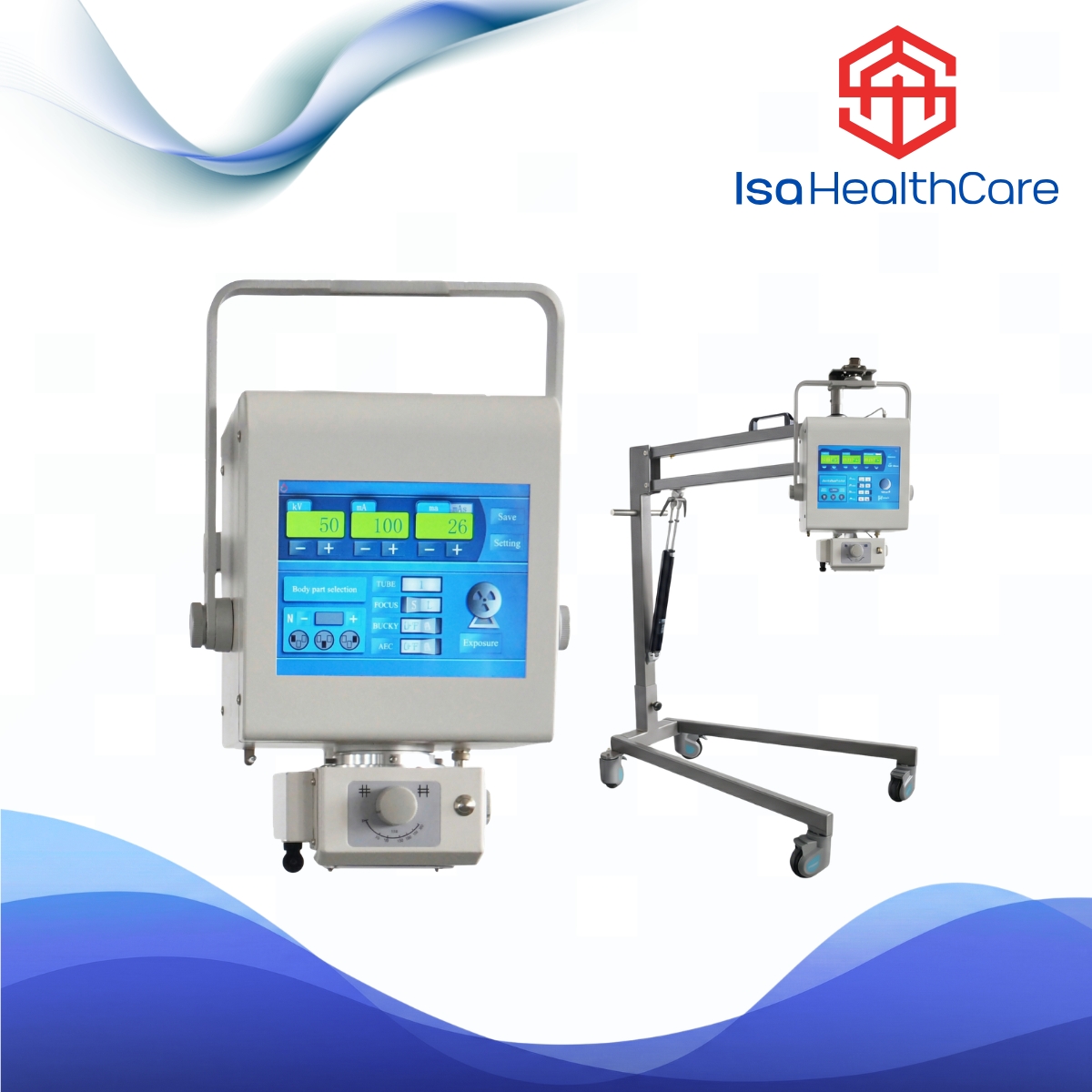

Triup High Frequency Mobile X-Ray (TR-100MDR)

Product Description:

TR100MDR Portable Digital X-Ray Machine: Ultimate Portability Meets Digital Excellence
The TR100MDR Digital HF Portable Diagnostic X-Ray Machine redefines point-of-care imaging by combining exceptional digital detector technology with true portability. Designed for healthcare professionals who need to bring high-quality diagnostic capabilities directly to the patient, this lightweight system is perfect for emergency rooms, intensive care units, nursing homes, and field hospitals. Despite its compact size, the TR100MDR delivers stunning image quality and intuitive operation, ensuring you never have to compromise on diagnostic confidence.

Cutting-Edge Digital Detector Technology
At the heart of the TR100MDR is a state-of-the-art wireless flat panel detector that sets a new standard for portable digital radiography.

• Large Format Detector: The included 17″ x 17″ Wired Flat Panel Detector (Model 1717X) provides a massive active area, capable of covering extensive anatomical regions in a single exposure.
• Superior Image Quality: Utilizing Amorphous Silicon technology with a CSI (Cesium Iodide) scintillator, the detector ensures exceptional X-ray absorption and conversion efficiency. This results in high-contrast, high-resolution images with minimal dose.
• High-Resolution Output: With a pixel pitch of just 139µm and a matrix of 3072 x 3072 pixels, the system achieves a limiting resolution of 3.6 lp/mm. The 16-bit AD conversion delivers images with smooth gradations and fine detail, critical for accurate diagnosis.

Lightweight Design, Heavyweight Performance
The TR100MDR is engineered for effortless mobility without sacrificing clinical capability.

• Truly Portable: Housed in a durable portable aluminum alloy box, the entire system can be easily transported between rooms, to remote locations, or stored compactly when not in use.
• Reliable Power Flexibility: Designed for global usability, the unit operates standardly on AC220V and offers an optional AC110V power configuration, ensuring it works reliably in diverse electrical environments.
• Intuitive User Interface: The built-in 10.4-inch touch screen provides a clear and responsive interface for the technologist. It features 48 Automatic Program Radiography (APR) presets, allowing for one-touch selection of optimized exposure parameters for different anatomical parts, significantly simplifying operation and reducing errors.
• Robust Generator: The 5.6kW high-frequency generator delivers a maximum tube voltage of 110kV and a maximum tube current of 100mA, providing ample power for a wide range of bedside and emergency examinations.
